CWDM-SFP10G-80LSFP+
$530.00
Quantity:

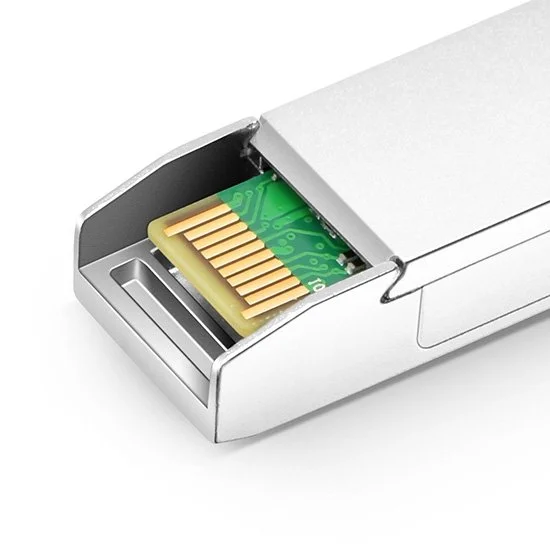

10G CWDM SFP+ Transceiver Module (SMF, 1470nm-1610nm, 80km, LC, DOM)
Product Highlights
Max. Power Consumption 1.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
CWDM for Multiple Applications over One Duplex Fiber
Hot Pluggable SFP+ MSA Compliant
FS BOX - Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Optical Interoperability with 10GBASE XFP Interfaces On the Same Link
Class 1 FDA Laser Safety and RoHS Compliant
IEEE 802.3ae Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | CWDM-SFP10G-80L | Vendor Name | FS |
| Form Factor | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | 1470nm-1610nm | Max Cable Distance | 80km |
| Connector | Duplex LC | Optical Components | DFB CWDM |
| Media | SMF | DOM Support | Yes |
| TX Power | 0~4dBm | Receiver Sensitivity | <-23dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant - CPRI - eCPRI |
