DWDM-SFP10G-80SFP+

$435.00

10G DWDM SFP+ transceiver supports up to 80km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8431 and SFF-8432 MSA standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be deployed in the DWDM networking equipment in metropolitan access and core networks.

10G DWDM SFP+ transceiver supports up to 80km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8431 and SFF-8432 MSA standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be deployed in the DWDM networking equipment in metropolitan access and core networks.

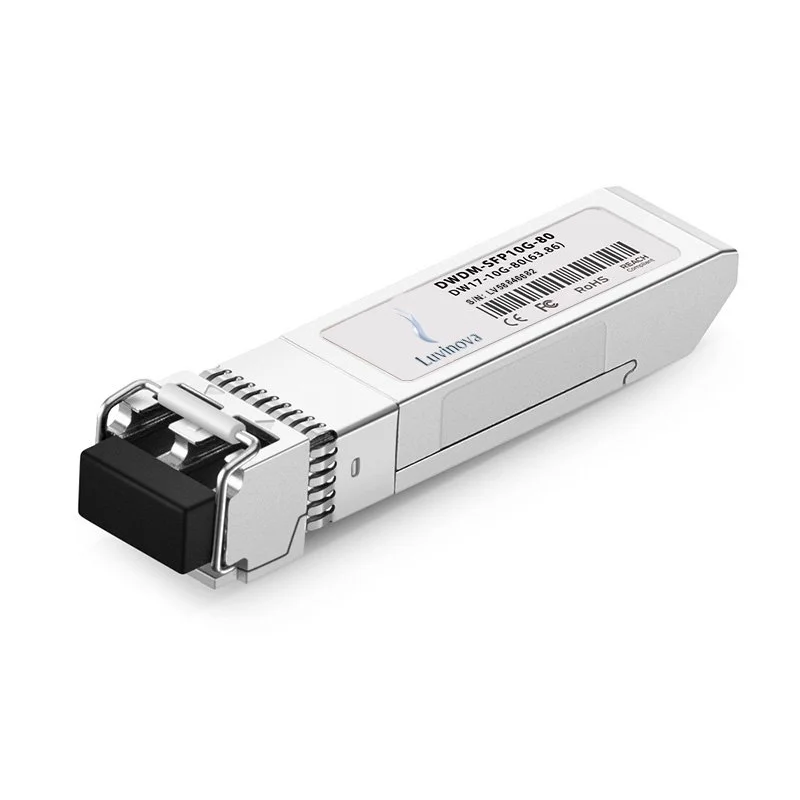

10G DWDM SFP+ Transceiver Module (SMF, 1528.77nm-1563.86nmnm, 80km, LC, DOM)

Product Highlights

Built-in Semtech Chip, Max. Power Consumption 1.8W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
DWDM for Multiple Applications over One Duplex Fiber
Hot Pluggable SFP+ MSA Compliant
FS BOX - Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Optical Interoperability with 10GBASE XFP Interfaces On the Same Link
IEEE 802.3ae Compliant

KeyValueKeyValue
Part NumberDWDM-SFP10G-80Vendor NameFS
Form FactorSFP+Max Data Rate10Gbps
Wavelength1559.79nmMax Cable Distance80km
ConnectorDuplex LCOptical ComponentsEML DWDM
TX Power0-4dBmReceiver Sensitivity<-23dBm
Powerbudget23dBReceiver Overload-8dBm
Power Consumption<1.8WMediaSMF
Bit Error Ratio (BER)1.00E-12Extinction Ratio>7.5dB
EMC (Electro Magnetic Compatibility)SupportedMTBF1,000,000 Hours
Temperature RangeCOM 0 to 70°C (32 to 158°F) IND -40 to 85°C (-40 to 185°F)ProtocolsSFP+ MSA Compliant - CPRI - eCPRI
