OSFP800-PLR8-B2OSFP
$9,268.00
The Generic Compatible OSFP transceiver supports up to 10km link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu-2021 and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for Breakout 2x 400G PLR4 or 8x 100G LR, 800G Ethernet and Data Center Applications.
Quantity:

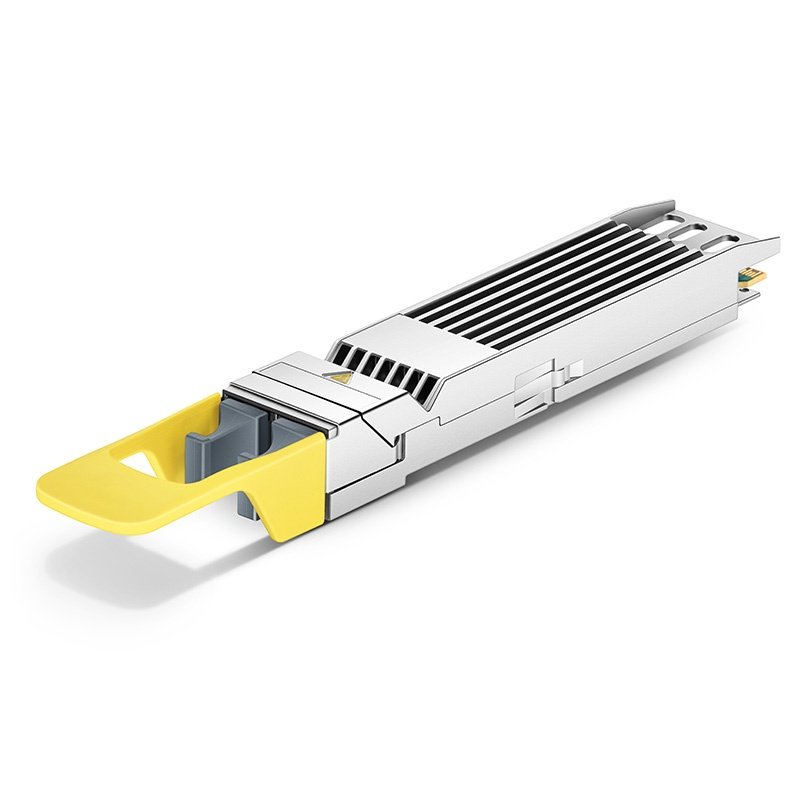

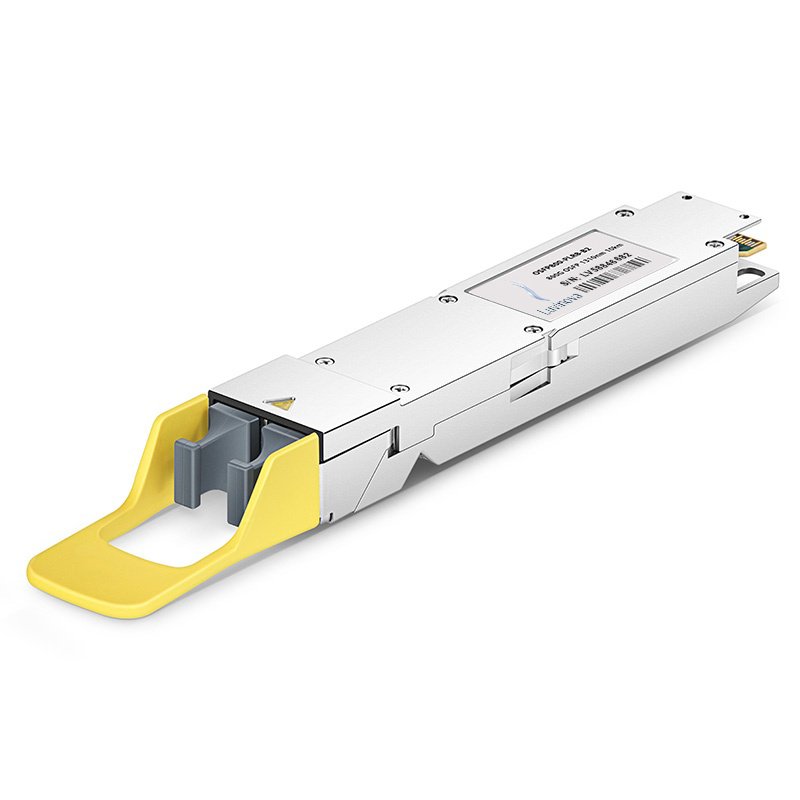

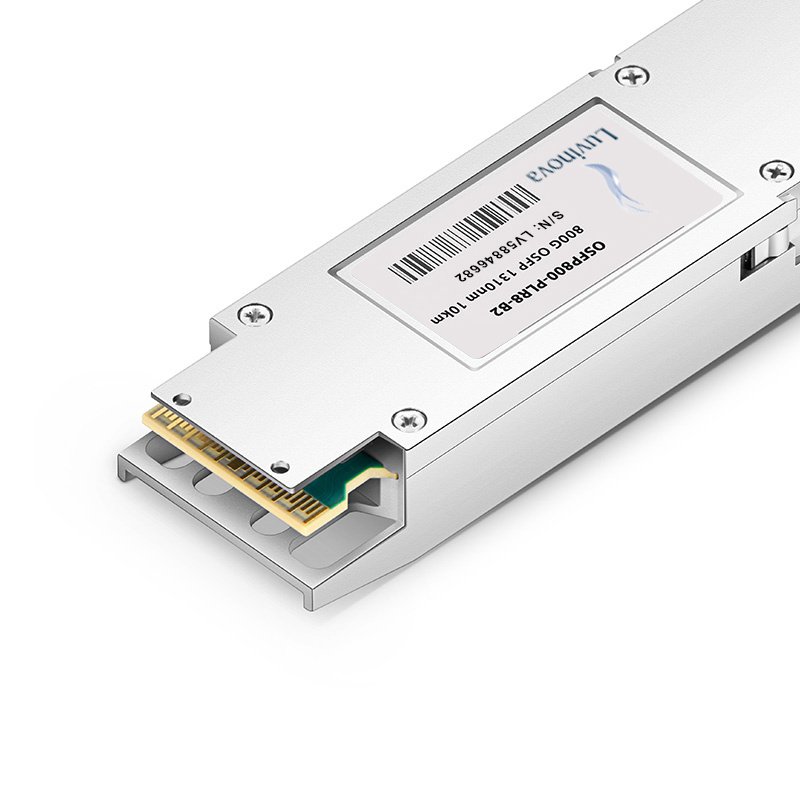

800GBASE-PLR8 OSFP Optical Transceiver Module (SMF, 1310nm, 10km, Dual MTP/MPO-12, DOM)
Product Highlights
Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 16.5W
Parameter Tests for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3ck and IEEE 802.3cu-2021
Hot Pluggable OSFP MSA Compliant
Support 2x400G or 8x100G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 8x100GAUI-1 C2M Electrical Interface
For Higher Bandwidth in Hyperscale Data Centers and Cloud Infrastructure
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 Laser Safety
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | OSFP800-PLR8-B2 | Vendor Name | FS |
| Form Factor | OSFP | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Dual MTP/MPO-12 | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -1.9~4.8dBm | Minimum Receiver Power | -8.2dBm |
| Powerbudget | 6.3dB | Receiver Overload | 4.8dBm |
| Power Consumption | ≤16.5W | Extinction Ratio | >3.5dB |
| Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | PAM4 |
| CDR (Clock and Data Recovery) | TX and RX Built-in DSP | Inbuilt FEC | No |
| Protocols | IEEE 802.3cu - IEEE P802.3ck - OSFP MSA | Warranty | 5 Years |
