OSFP-LR8-400GOSFP

$7,223.00

The 400GBASE-LR8 module supports link lengths of up to 10km over single mode fiber (SMF) with duplex LC connector. It is compliant to ICMIS Rev 4.0, IEEE 802.3bs and OSFP MSA standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

The 400GBASE-LR8 module supports link lengths of up to 10km over single mode fiber (SMF) with duplex LC connector. It is compliant to ICMIS Rev 4.0, IEEE 802.3bs and OSFP MSA standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

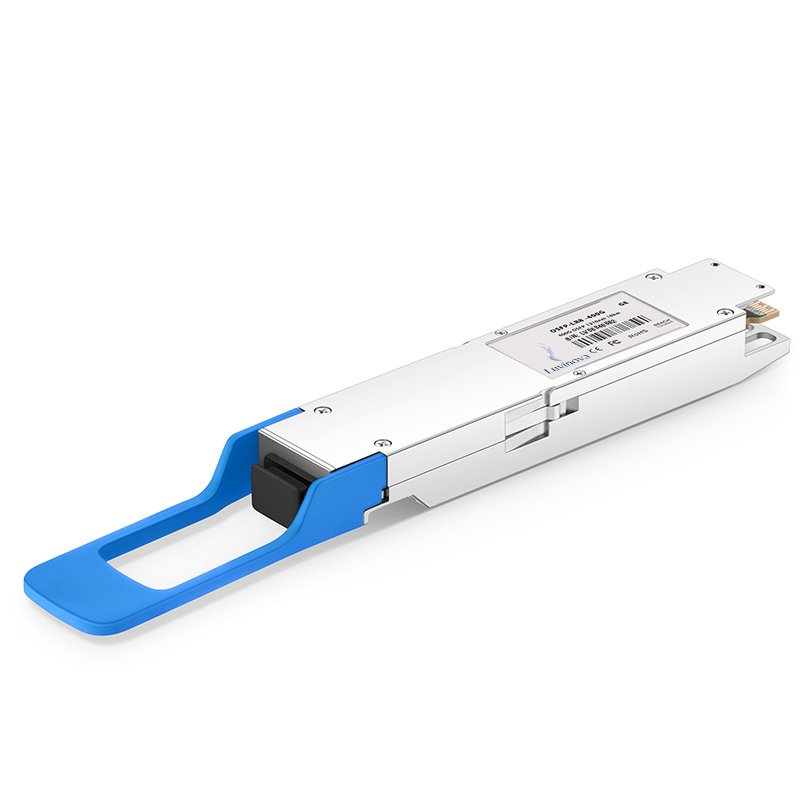

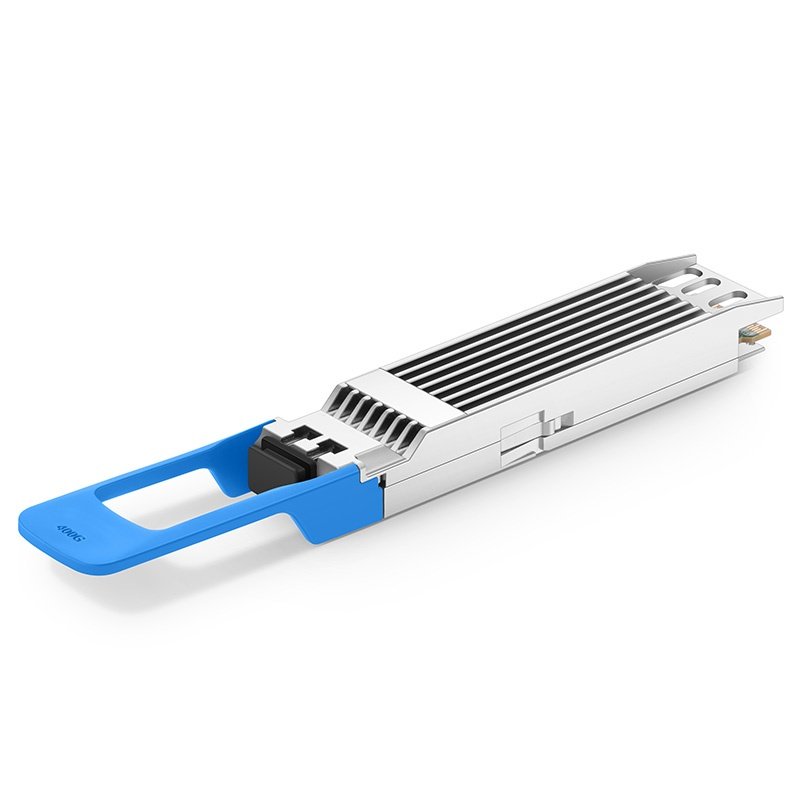

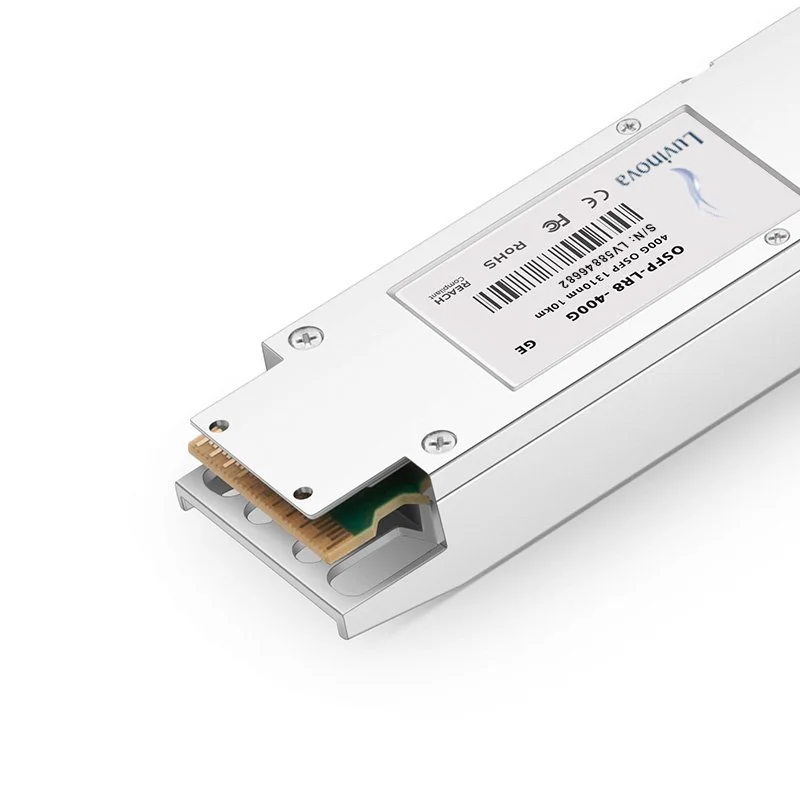

Generic Compatible 400GBASE-LR8 OSFP PAM4 1310nm 10km DOM Optical Transceiver Module (SMF, 1310nm, 10km, Duplex LC, DOM)

Product Highlights

Built-in Inphi DSP Chip, Max. Power Consumption 14W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Compliant with OSFP MSA CMIS Rev4.0
Hot-pluggable OSFP Form Factor
High-speed Electrical Compliant to IEEE 802.3bs
8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 Laser Safety

KeyValueKeyValue
Part NumberOSFP-LR8-400GVendor NameFS
Form FactorOSFPMax Data Rate400Gbps
Wavelength1310nmMax Cable Distance10km

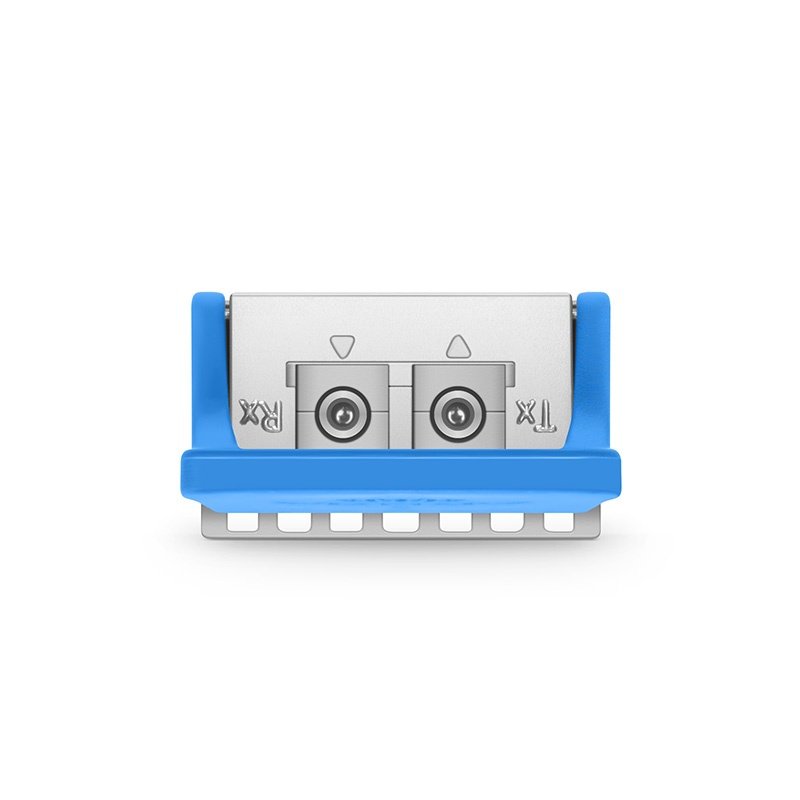

ConnectorDuplex LC (UPC)MediaSMF
Transmitter TypeEMLReceiver TypePin
TX Power-2.8~5.3dBmReceiver Sensitivity＜-9.1dBm
Powerbudget6.3dBReceiver Overload6.3dBm
Power Consumption≤14WExtinction Ratio>3.5dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
Packaging TechnologyBOX PackagingModulation FormatPAM4
DSPTX and RXFEC FunctionSupport KP4 FEC
ProtocolsCMIS Rev 4.0 - IEEE 802.3bs - OSFP MSAWarranty5 Years
