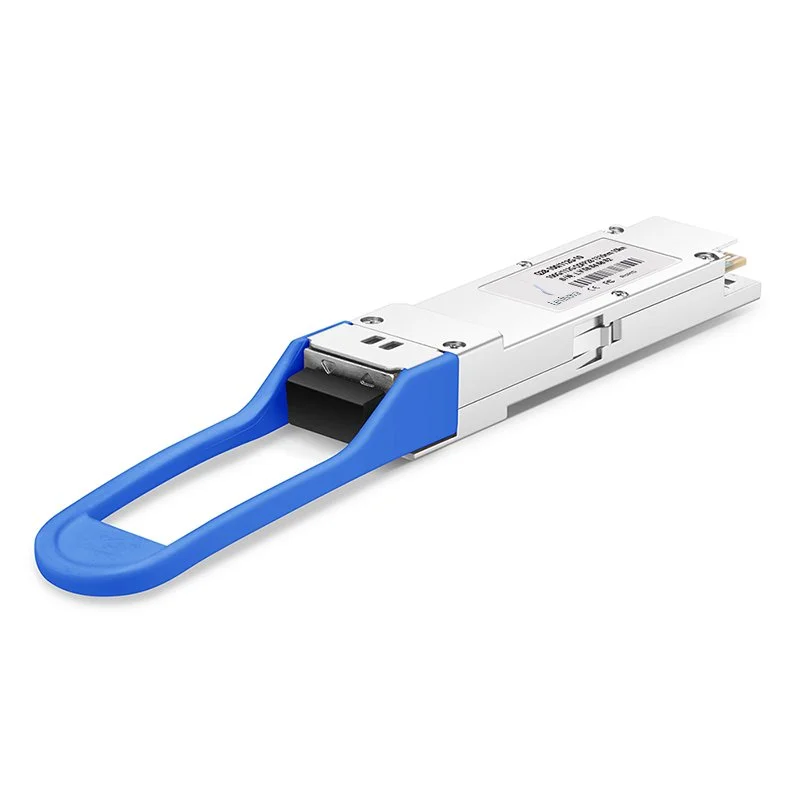

Q28-100/112G-10QSFP28
The 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.
100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Product Highlights
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | Q28-100/112G-10 | Vendor Name | FS |
| Form Factor | QSFP28 | Data Rate | Dual Rate 103.1Gbps and 112Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Cable Type | SMF |
| Transmitter Type | 4 x LAN WDM DML TOSA | Receiver Type | 4 x PIN ROSA |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power(100G) | -4.3~4.5dBm | Receiver Sensitivity(100G) | <-8.6dBm |
| TX Power(112G) | -0.6~4dBm | Receiver Sensitivity(112G) | <-8.4dBm |
| Receiver Overload(100G) | 4.5dBm | Receiver Overload(112G) | 4dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | >4dB |
| Modulation Format | NRZ | CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
| Transmit and Dispersion Penalty | 2.2dB | Powerbudget | 6.3dB |
| Packaging Technology | BOX Packaging | Host FEC | Supported |
| Protocols | 100G Ethernet - 25G Ethernet - OTN OTU4 4I1-9D1F | Application | 100GBASE Ethernet - Telecom - 5G Network Mid/Backhaul |
