Q28-100/112G-20QSFP28

$1,498.00

The 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 20km over single mode fiber(SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

The 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 20km over single mode fiber(SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

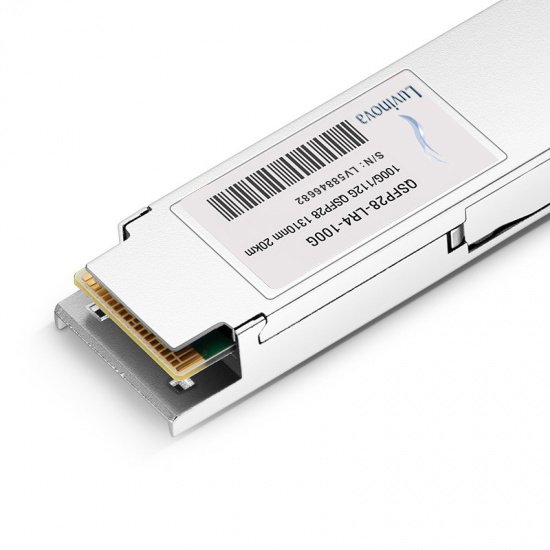

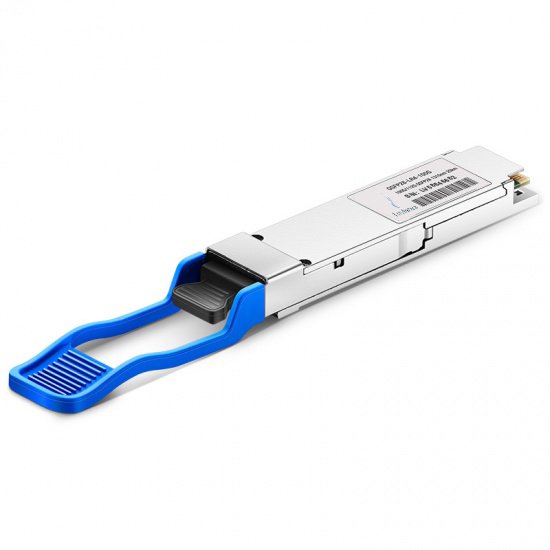

100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module (SMF, 1310nm, 20km, LC, DOM)

Product Highlights

Max. Power Consumption 3.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Support 100G/112G Dual-rate
High-Speed Electrical Interface Compliant to IEEE 802.3ba
FS BOX - Support Real-time Configuration
Hot Pluggable QSFP28 MSA Compliant
Adopt BOX Packaging, with Great Reliability, Airtightness, and Heat Dissipation Performance
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

KeyValueKeyValue
Part NumberQ28-100/112G-20Vendor NameFS
Form FactorQSFP28Data RateDual Rate 103.1Gbps and 112Gbps
Wavelength1310nmMax Cable Distance20km
ConnectorDuplex LCCable TypeSMF
Transmitter Type4 x LAN WDM DML TOSAReceiver Type4 x PIN ROSA
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
TX Power(100G)-1.0~4.5dBmReceiver Sensitivity(100G)<-9.5dBm
TX Power(112G)0~4dBmReceiver Sensitivity(112G)<-9.0dBm
Power Consumption≤3.5WExtinction Ratio>4dB
CDR (Clock and Data Recovery)TX & RX Built-in CDRTransmit and Dispersion Penalty2.2dB
Packaging TechnologyBOX PackagingProtocols100G Ethernet - 25G Ethernet - OTN OTU4 4I1-9D1F
