Q28-100/112G-40QSFP28

$4,497.00

The 100GBASE-ER4 and 112G OTU4 QSFP28 Dual Rate Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-ER4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

The 100GBASE-ER4 and 112G OTU4 QSFP28 Dual Rate Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-ER4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

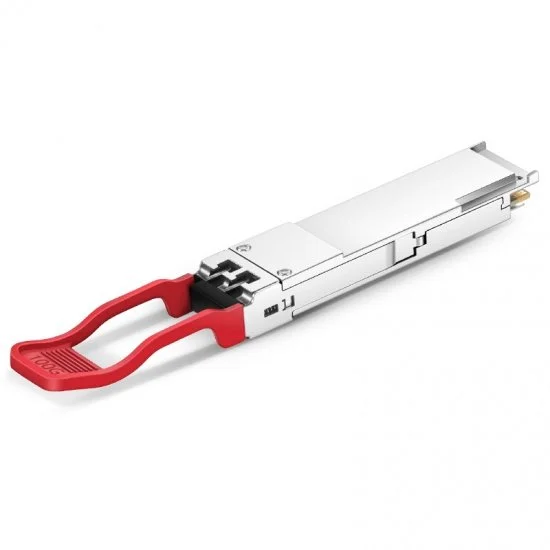

100GBASE-ER4 and 112G OTU4 QSFP28 Dual Rate Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM))

Product Highlights

Max. Power Consumption 4.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Support 100G/112G Dual-rate
High-Speed Electrical Interface Compliant to IEEE 802.3-2018
FS BOX - Support Real-time Configuration
Hot Pluggable QSFP28 MSA Compliant
Adopt BOX Packaging, with Great Reliability, Airtightness, and Heat Dissipation Performance
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

KeyValueKeyValue
Part NumberQ28-100/112G-40Vendor NameFS
Form FactorQSFP28Data RateDual Rate 103.1Gbps and 112Gbps
Wavelength1310nmMax Cable Distance40km
ConnectorDuplex LCCable TypeSMF
Transmitter Type4 x LAN WDM EML TOSAReceiver Type4 x APD ROSA
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
TX Power(100G)-2.5~2.9dBmReceiver Sensitivity(100G)<-15dBm
TX Power(112G)-1~3.3dBmReceiver Sensitivity(112G)<-19dBm
Powerbudget14dBTransmit and Dispersion Penalty2.5dB
Power Consumption≤4.5WExtinction Ratio>4dB
CDR (Clock and Data Recovery)TX & RX Built-in CDRPackaging TechnologyBOX Packaging
