Q28DD-200G-2SR4QSFP-DD
$721.00
The Dell Q28DD-200G-2SR4 Compatible QSFP-DD transceiver supports up to 100m link lengths over multimode fiber (MMF) via MTP/MPO-24 connectors. This transceiver is compliant with IEEE 802.3bm and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2×100GBASE-SR4 Ethernet, Data Centers and Switch & Router Connections.
Quantity:

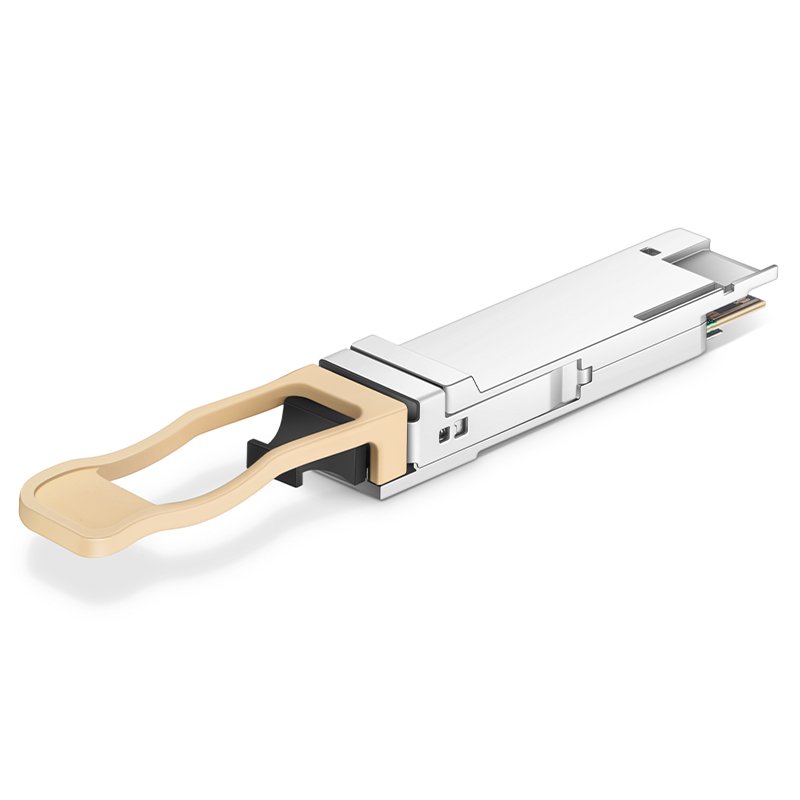

200GBASE-2SR4 QSFP-DD Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO-24, DOM)
Product Highlights
Max. Power Consumption 4.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP-DD Form Factor
High-speed Electrical Compliant to IEEE 802.3bs
Compliant with QSFPDD MSA CMIS V4.0
Support 2x100G Breakout for Higher Port Density and Easy Migration to 200G Platforms
8x25G NRZ Retimed 200GAUI-8 Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | Q28DD-200G-2SR4 | Vendor Name | FS |
| Form Factor | QSFP-DD | Max Data Rate | 206.24Gbps(8x 25.78Gbps) |
| Wavelength | 850nm | Max Cable Distance | 100m |
| Connector | MTP/MPO-24 | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -8.4~2.4dBm | Receiver Sensitivity | ＜-10.3dBm |
| Powerbudget | 1.9dB | Receiver Overload | 3.4dBm |
| Power Consumption | ≤4.5W | Extinction Ratio | ＞2dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
| Protocols | IEEE 802.3bm - QSFP-DD MSA Compliant - CMIS 4.0 | Warranty | 5 Years |
