Q28-ER4L-100G-XQSFP28
$3,706.00
The Cisco QSFP-100G-ER4L-X Compatible QSFP28 transceiver is designed for use in 100GBASE Ethernet throughput up to 40km over LC duplex SMF using a wavelength of 1310nm. Full 40km reach requires the use of FEC on the host platform. Without FEC, the reach is 30km.
Quantity:

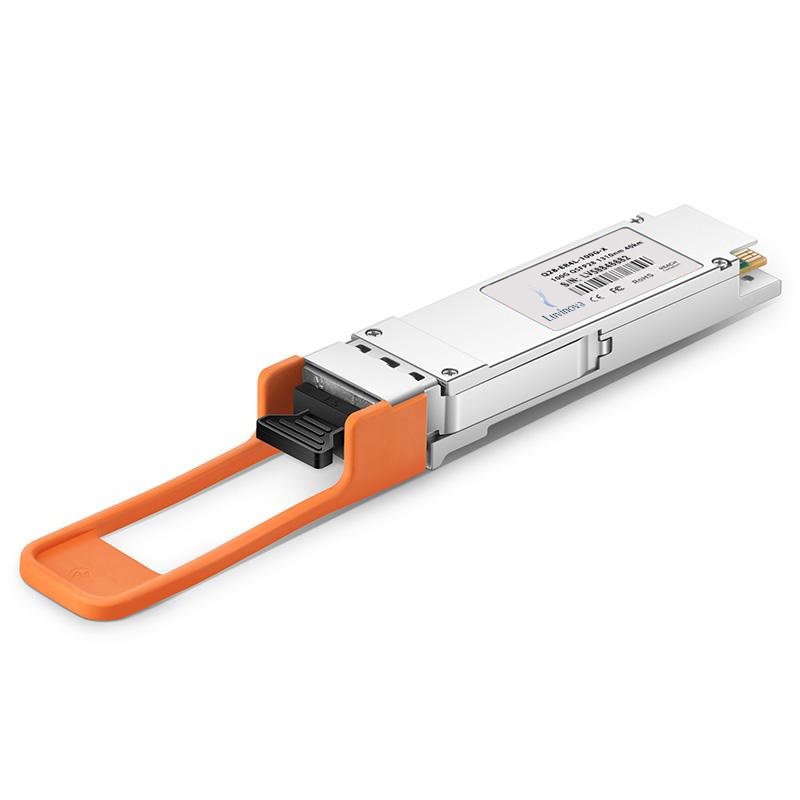

Cisco QSFP-100G-ER4L-X Compatible 100GBASE-ER4L QSFP28 Transceiver Module (SMF, 1310nm, 40km, LC, Extended Temp, DOM)
Product Highlights
Max. Power Consumption 5.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3bm
Extended Temperature Range -20℃ to +85°C
FS BOX - Support Real-time Configuration
Hot Pluggable QSFP28 MSA Compliant
Adopt BOX Packaging, with Great Reliability, Airtightness, and Heat Dissipation Performance
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | Q28-ER4L-100G-X | Vendor Name | FS |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelengths | 1310nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML | Receiver Type | APD |
| TX Power | -2.5~6.5dBm | Minimum Receiver Power | -20.5dBm |
| Powerbudget | 18dB | Receiver Overload | -3.5dBm |
| Power Consumption | ≤5.5W | Extinction Ratio | >4.5dB |
| DDM/DOM | Supported | Extended Temperature Range | -20 to 85ºC ( -4 to 185 °F) |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Packaging Technology | BOX Packaging |
| Protocols | SFF-8636 - 4WDM MSA | Warranty | 5 Years |
