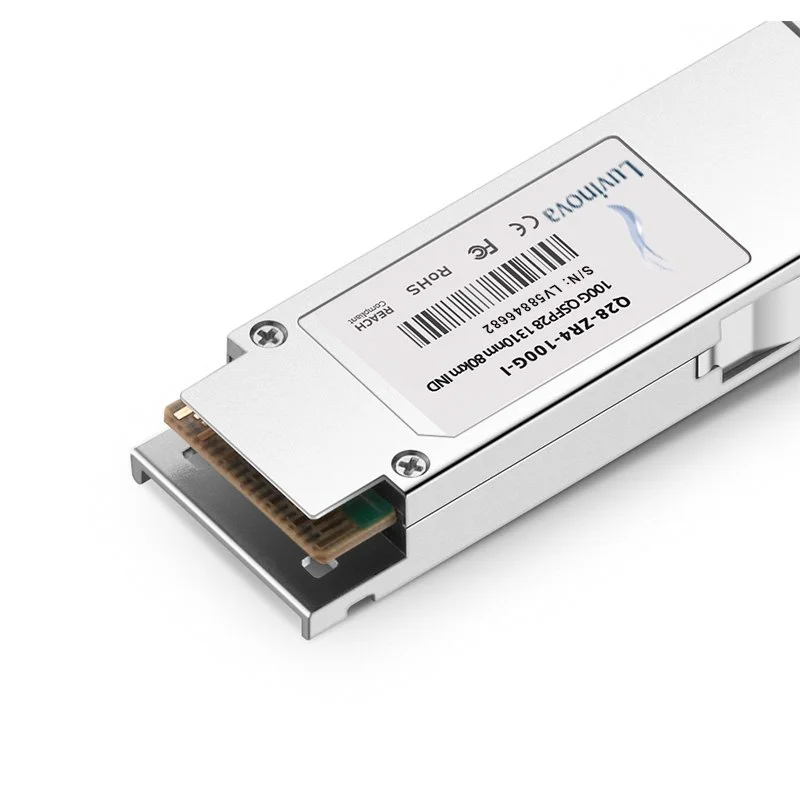

Q28-ZR4-100G-IQSFP28

$7,087.00

The Cisco Compatible 100GBASE-ZR4 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-ZR4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as telecom, service provider applications and also 5G wireless network, suitable for both outdoor and indoor deployments.

The Cisco Compatible 100GBASE-ZR4 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-ZR4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as telecom, service provider applications and also 5G wireless network, suitable for both outdoor and indoor deployments.

Cisco Compatible 100GBASE ZR4 QSFP28 Optical Transceiver Module (Industrial, SMF, 1310nm, 80km, LC, DOM)

Product Highlights

Max. Power Consumption 7W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3bm
Industrial Temperature Range -40°C to 85°C
FS BOX - Support Real-time Configuration
Hot Pluggable QSFP28 MSA Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

KeyValueKeyValue
Part NumberQ28-ZR4-100G-IVendor NameFS
Form FactorQSFP28Max Data Rate103.125Gbps (4x 25.78Gbps)
Wavelength1310nmMax Cable Distance80km
ConnectorDuplex LCMediaSMF
Transmitter TypeLAN WDM EMLReceiver TypeSOA+PIN
TX Power2.0~6.5dBmMinimum Receiver Power-28.0dBm
Powerbudget30dBReceiver Overload-5dBm
Power Consumption≤7WExtinction Ratio>6dB
DDM/DOMSupportedIndustrial Temperature Range-40 to 85°C (-40 to 185°F)
Packaging TechnologyBOX PackagingCDR (Clock and Data Recovery)TX & RX Built-in CDR
ProtocolsIEEE 802.3ba - QSFP28 MSAWarranty5 Years
