QDD-400G-SR8-SQSFP-DD
$680.00
The Cisco QDD-400G-SR8-S Compatible 400GBASE-SR8 module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
Quantity:

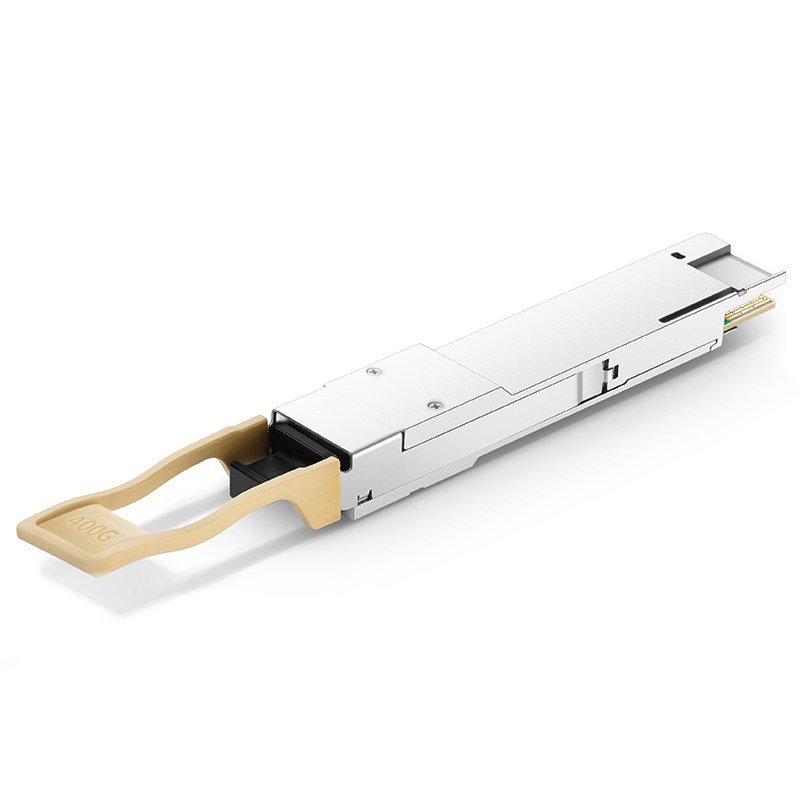

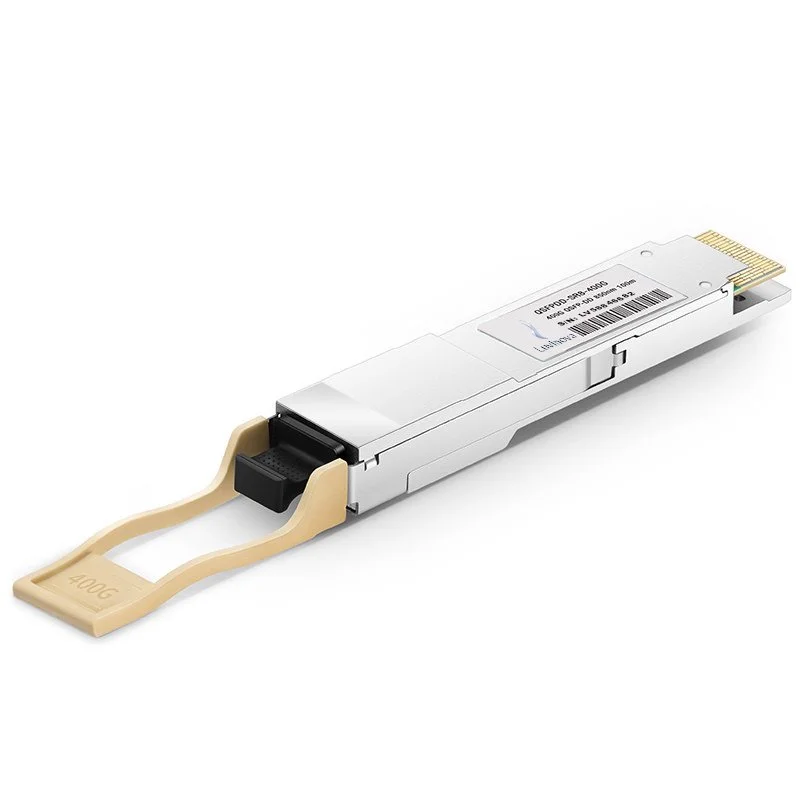

Cisco QDD-400G-SR8-S Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)
Product Highlights
Built-in Inphi DSP Chip, Max. Power Consumption 10W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Compliant with QSFP-DD MSA CMIS Rev5.0, OIF 56G PAM4
FS BOX V4.0 - Support Real-time Configuration
Hot Pluggable QSFP-DD Form Factor
High-speed Electrical Compliant to IEEE 802.3cd
8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QDD-400G-SR8-S | Vendor Name | FS |
| Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
| Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-16 (APC) | Media | MMF |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | -6~4dBm | Receiver Sensitivity | <-7.9dBm |
| Powerbudget | 1.9dB | Receiver Overload | 4dBm |
| Power Consumption | ≤10W | Extinction Ratio | 3dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DSP | TX and RX | Inbuilt FEC | No |
| Protocols | IEEE 802.3cd - QSFP-DD MSA - CMIS 5.0 | Warranty | 5 Years |
