QDD800-2LR4-C1QSFP-DD
$9,268.00
The Generic Compatible 800GBASE-2LR4 QSFP-DD transceiver supports up to 10km link lengths over single-mode fiber (SMF) via dual CS duplex connectors. This transceiver is compliant with IEEE P802.3ck D3.0, QSFP-DD800 MSA HW Rev 6.01 and CMIS Rev 5.0 standard. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G LR4 application.
Quantity:

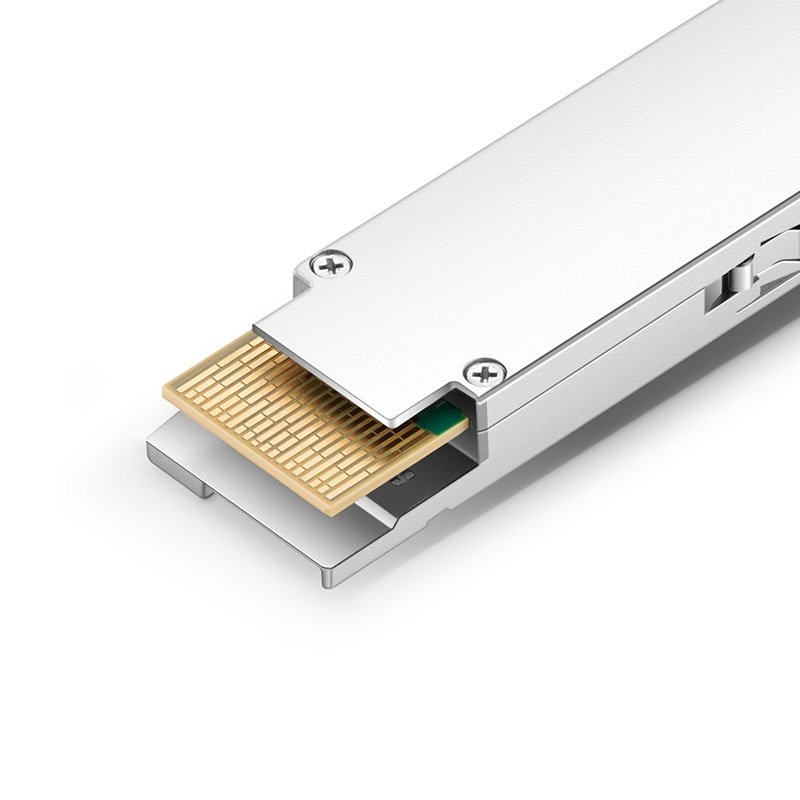

Generic Compatible 800G QSFP-DD Transceiver Module (SMF, 1310nm, 10km, CS, DOM)
Product Highlights
Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 18W
Self-developed 53G EML Laser Chip to Ensure Production
Parameter Tests for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3ck
Hot Pluggable QSFP-DD MSA Compliant
Support 2x400G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 2x400GAUI-4 C2M Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QDD800-2LR4-C1 | Vendor Name | FS |
| Form Factor | QSFP-DD | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1271nm/1291nm/1311nm/1331nm | Max Cable Distance | 10km |
| Connector | Dual CS Duplex | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.7dBm~5.1dBm | Minimum Receiver Power | -9dBm |
| Powerbudget | 6.3dB | Power Consumption | ≤18W |
| Extinction Ratio | >3.5dB | DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Packaging Technology | COB (Chip on Board) Packaging |
| Modulation Format | PAM4 | CDR (Clock and Data Recovery) | TX and RX Built-in DSP |
| Protocols | IEEE P802.3ck - QSFP-DD800 MSA | Warranty | 5 Years |
