QDD800-DR8-B1QSFP-DD
$6,814.00
The 800GBASE-DR8 QSFP-DD Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over singlemode fiber (SMF) with MPO-16 connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G DR4 or 8x 100G DR application.
Quantity:

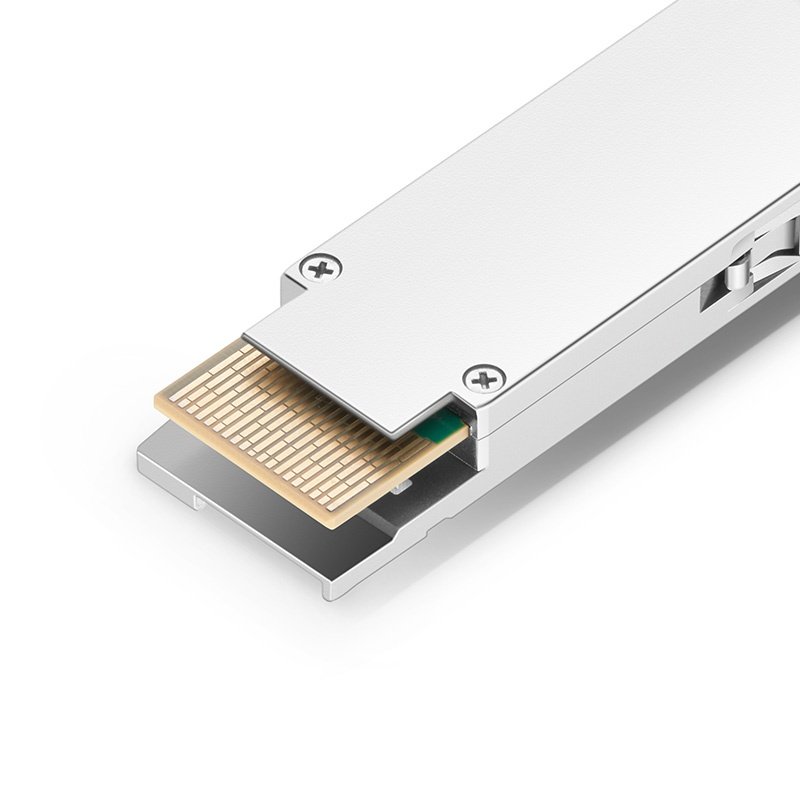

800GBASE-DR8 QSFP-DD Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO-16, DOM)
Product Highlights
Connect New 800G Sites to Legacy 400G Sites via 2x400G Breakout
Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 18W
Self-developed 53G EML Laser Chip to Ensure Production
Parameter Tests for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE P802.3ck and IEEE 802.3cu
Hot Pluggable QSFP-DD MSA Compliant
Support 2x400G or 8x 100G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 8x100GAUI-1 C2M Electrical Interface
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QDD800-DR8-B1 | Vendor Name | FS |
| Form Factor | QSFP-DD | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 500m |
| Connector | MTP/MPO-16 | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.9~4.0dBm | Minimum Receiver Power | -10.3dBm |
| Powerbudget | 3dB | Receiver Overload | 4dBm |
| Power Consumption | ≤18W | Extinction Ratio | >3.5dB |
| Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | PAM4 |
| CDR (Clock and Data Recovery) | TX and RX Built-in DSP | Inbuilt FEC | No |
| Protocols | IEEE 802.3cu - IEEE P802.3ck - QSFP-DD MSA HW Rev 6.01 - CMIS5.0 | Warranty | 5 Years |
