QDD800-PLR8-B1QSFP-DD
$9,268.00
The Generic Compatible QSFP-DD transceiver supports up to 10km link lengths over single-mode fiber (SMF) with MTP/MPO-16 connectors. This transceiver is compliant with QSFP-DD MSA HW Rev 6.01, IEEE 802.3cu-2021 and CMIS Rev 5.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G PLR4 or 8x 100G LR application.
Quantity:

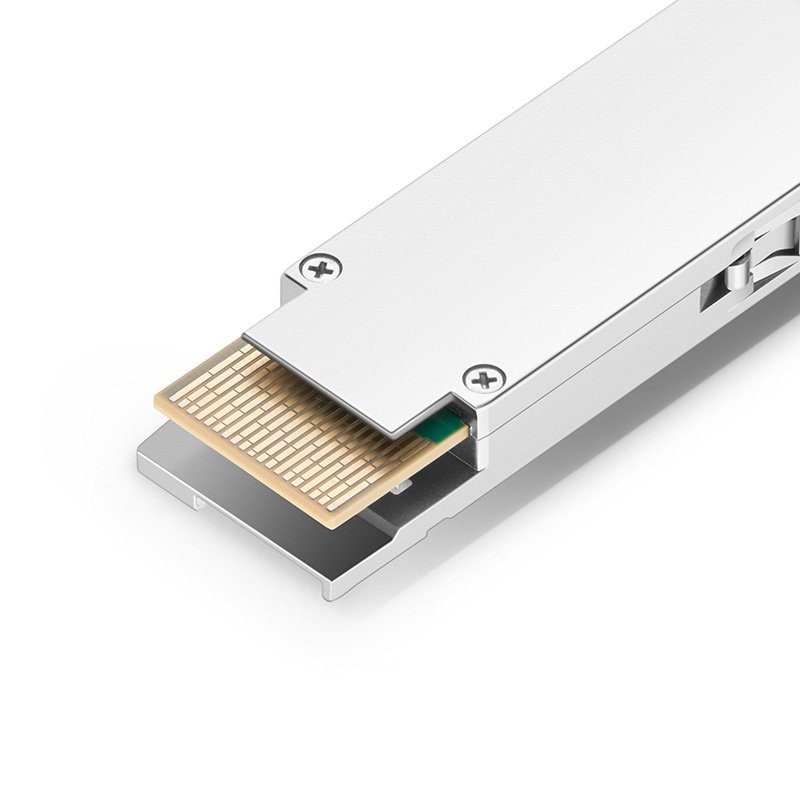

800GBASE-PLR8 QSFP-DD Optical Transceiver Module (SMF, 1310nm, 10km, MTP/MPO-16, DOM)
Product Highlights
Built-in Broadcom 7nm DSP Chip, Typical Power Consumption 18W
Parameter Tests for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to CMIS Rev 5.0 and IEEE 802.3cu-2021
Hot Pluggable QSFP-DD MSA Compliant
Support 2x400G or 8x100G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 2x400GAUI-4 C2M Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 Laser Safety
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QDD800-PLR8-B1 | Vendor Name | FS |
| Form Factor | QSFP-DD | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1311nm | Max Cable Distance | 10km |
| Connector | MTP/MPO-16 | Media | SMF |
| Transmitter Type | EML | Receiver Type | SiPhotonics PIN PD |
| TX Power | -1.9~4.8dBm | Minimum Receiver Power | -8.2dBm |
| Powerbudget | 6.3dB | Receiver Overload | 4.8dBm |
| Typical Power Consumption | 18W | Extinction Ratio | >3.5dB |
| Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | PAM4 |
| CDR (Clock and Data Recovery) | TX and RX Built-in DSP | Inbuilt FEC | No |
| Protocols | CMIS Rev 5.0 - QSFP-DD MSA HW Rev 6.01 - IEEE 802.3cu-2021 | Warranty | 5 Years |
