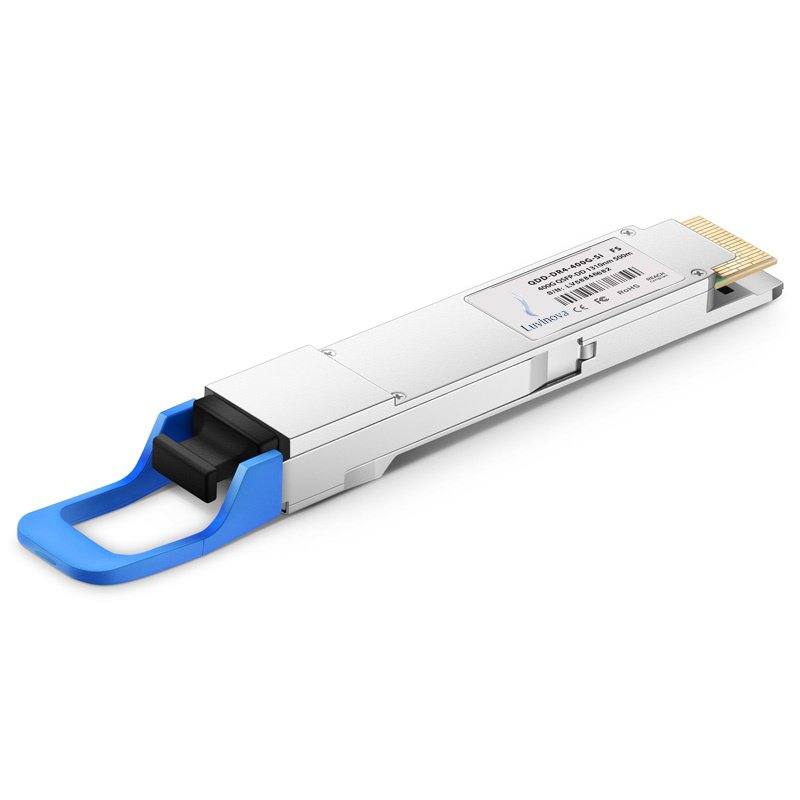

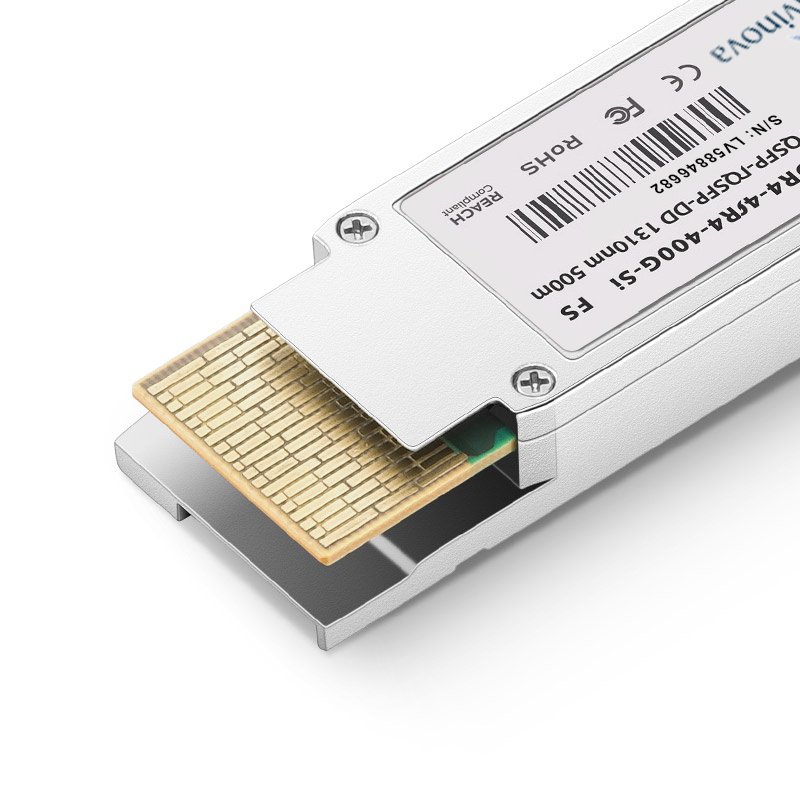

QDD-DR4-400G-SiQSFP-DD
QSFP-DD 400GBASE-DR4 silicon photonics transceiver is based on a new state-of-the-art silicon photonics (SiPh) platform. It uses SiPh chips that integrate a number of active and passive optoelectronic components, 3D packaging technology and industry-leading 7nm DSP chips. It is a cost-effective and lower power consumption solution for 400GBASE data center. The 400GBASE-DR4 silicon photonics module supports link lengths of up to 500m SMF with MTP/MPO-12 connector. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP28-DR-100G.
400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM Silicon Photonics Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)
Product Highlights
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QDD-DR4-400G-Si | Vendor Name | FS |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps (4x106.25Gb/s) |
| Wavelength | 1310nm | Max Cable Distance | 500m |
| Connector | MTP/MPO-12 (APC) | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -2.9~4.0dBm | Receiver Sensitivity | <-5.9dBm |
| Powerbudget | 3dB | Receiver Overload | 4dBm |
| Power Consumption | ≤10W | Extinction Ratio | 3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DSP | TX and RX | Host FEC | Supported |
| Protocols | IEEE 802.3bs | QSFP-DD MSA | CMIS 4.1 | Warranty | 5 Years |
