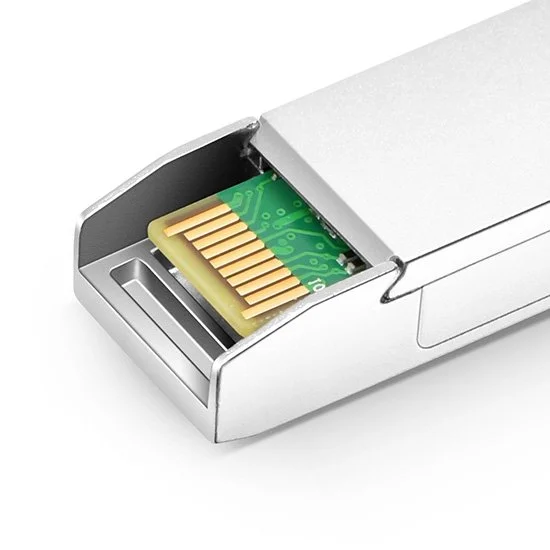

QFX-SFP-1/10GE-LR-XSFP+
Juniper Networks QFX-SFP-1/10GE-LR-X Compatible SFP+ transceiver supports up to 10km over OS2 SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW, and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fibre Channel etc.
QFX-SFP-1/10GE-LR-XSFP+
Juniper Networks QFX-SFP-1/10GE-LR-X Compatible SFP+ transceiver supports up to 10km over OS2 SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW, and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fibre Channel etc.
Juniper Networks QFX-SFP-1/10GE-LR-X Compatible Dual-Rate 1000BASE-LX and 10GBASE-LR SFP+ Transceiver (SMF, 1310nm, 10km, LC, DOM)
Product Highlights
Key | Value | Key | Value |
---|---|---|---|
Part Number | QFX-SFP-1/10GE-LR-X | Vendor Name | FS |
Form Factor | SFP+ | Max Data Rate | 1/10.3Gbps |
Wavelength | 1310nm | Max Cable Distance | 10km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -8.2~0.5dBm | Receiver Sensitivity | <-14.4dBm |
Powerbudget | 6.2dB | Receiver Overload | 0.5dBm |
Power Consumption | ≤1W | Extinction Ratio | >3.5dB |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE 802.3ae - SFF-8472 - SFF-8431 - SFF-8432 - SFP+ MSA Compliant - CPRI - eCPRI |
