QSFP-100G-ESR4-SQSFP28

$149.00

The Cisco QSFP-100G-ESR4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 200m over OM3 MMF or 300m over OM4 MMF using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy-to-install, hot swappable transceiver is suitable to be used at key locations optical networks like 100GBASE Ethernet.

The Cisco QSFP-100G-ESR4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 200m over OM3 MMF or 300m over OM4 MMF using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy-to-install, hot swappable transceiver is suitable to be used at key locations optical networks like 100GBASE Ethernet.

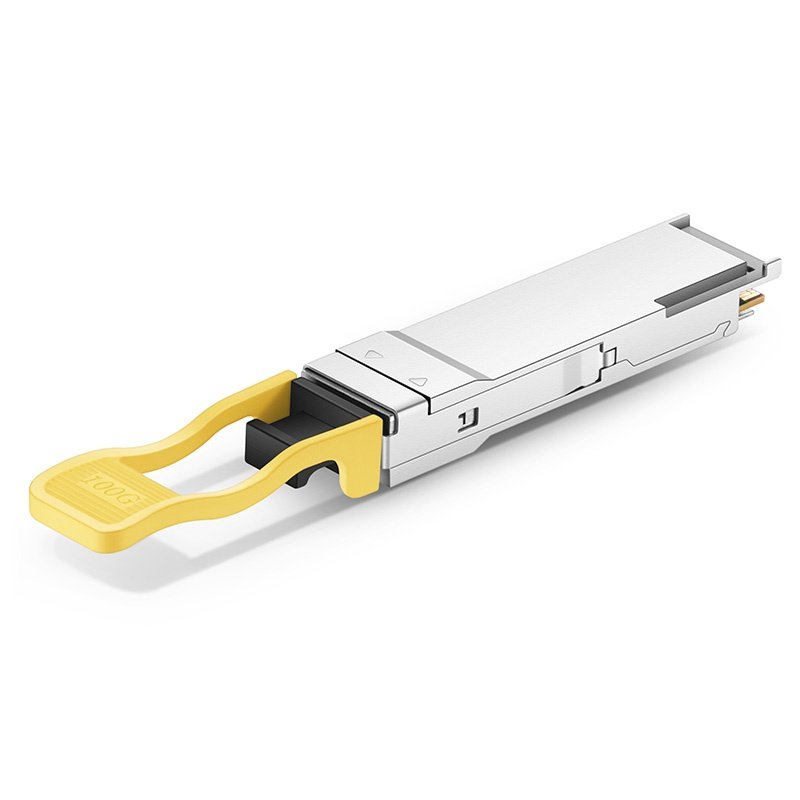

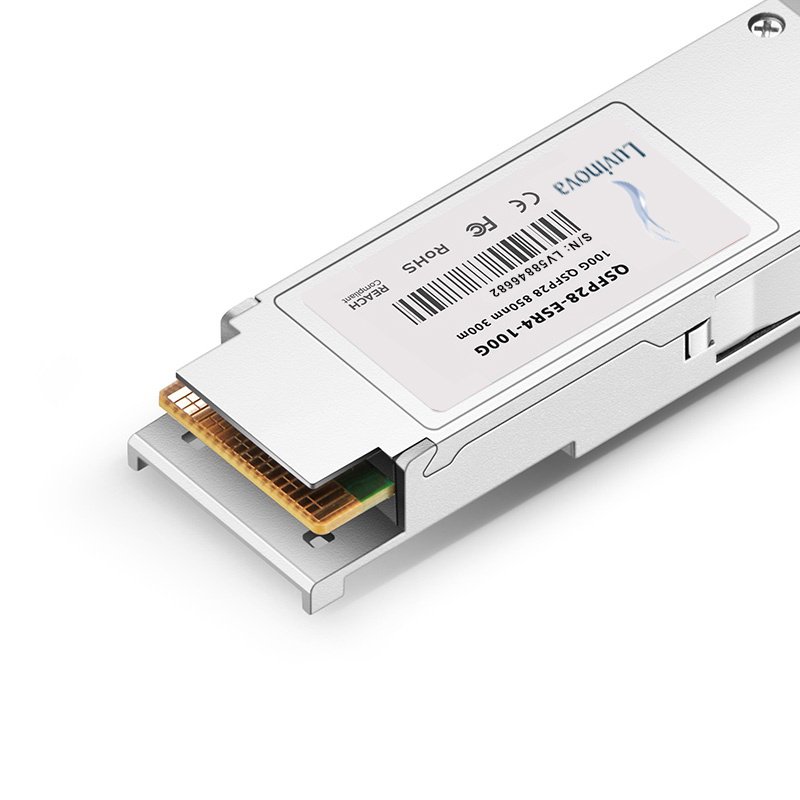

Cisco QSFP-100G-ESR4-S Compatible 100GBASE-ESR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 300m, MTP/MPO, DOM)

Product Highlights

Max. Power Consumption 2.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3bm
Support 100G to 4x25G Breakout Application
FS BOX - Support Real-time Configuration
Hot Pluggable QSFP28 MSA Compliant
Class 1 Laser Safety
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

KeyValueKeyValue
Part NumberQSFP-100G-ESR4-SVendor NameFS
Form FactorQSFP28Max Data Rate103.125Gbps (4x 25.78Gbps)
Wavelengths850nmMax Cable Distance200m@OM3/300m@OM4
ConnectorMTP/MPO-12MediaMMF
Transmitter TypeVCSELReceiver TypePIN
TX Power-8.4~2.4dBmMinimum Receiver Power-10.3dBm
Powerbudget1.9dBReceiver Overload3.4dBm
Power Consumption≤2.5WExtinction Ratio>2dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
CDR (Clock and Data Recovery)TX & RX Built-in CDRFEC FunctionSupport RS-FEC
ProtocolsIEEE 802.3bm | QSFP28 MSA | SFF-8665 | SFF-8636 | SFF-8679Warranty5 Years
