QSFP-200G-FR4QSFP56
$1,362.00
The Arista Networks QSFP-200G-FR4 Compatible QSFP56 Transceiver Module is designed for 200GBASE Ethernet throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm with duplex LC connectors. This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, Data Center, and Cloud Networks.
Quantity:

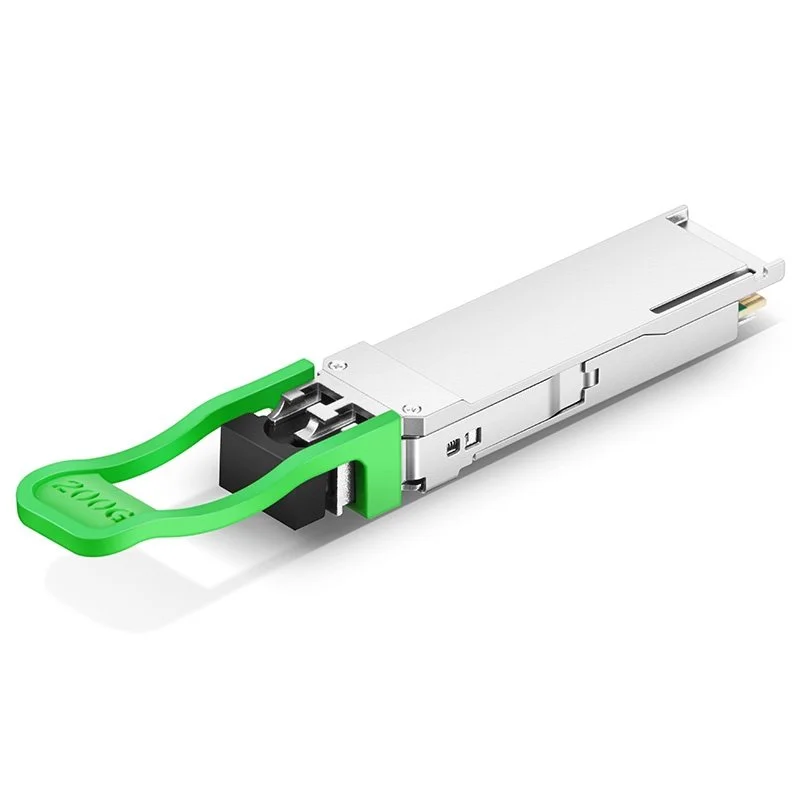

Arista Networks QSFP-200G-FR4 Compatible 200GBASE-FR4 QSFP56 Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM)
Product Highlights
Built-in Oclaro Chip, Max. Power Consumption 6.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP56 Form Factor
High-speed Electrical Compliant to IEEE 802.3bs and IEEE 802.3cd
Compliant with QSFP56 MSA CMIS V4.0
4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QSFP-200G-FR4 | Vendor Name | FS |
| Form Factor | QSFP56 | Max Data Rate | 200Gbps (4x50Gbps) |
| Wavelength | 1271nm - 1291nm - 1311nm and 1331nm | Max Cable Distance | 2km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -4.2~4.7dBm | Receiver Sensitivity | < -8.2dBm |
| Powerbudget | 4dB | Receiver overload | 4.7dBm |
| Power Consumption | ≤6.5W | Extinction Ratio | >3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3cd - IEEE 802.3bs - QSFP56 MSA - SFF-8665 - SFF-8024 - SFF-8679 | Warranty | 5 Years |
