QSFP28-BIDI-100GQSFP28
$462.00

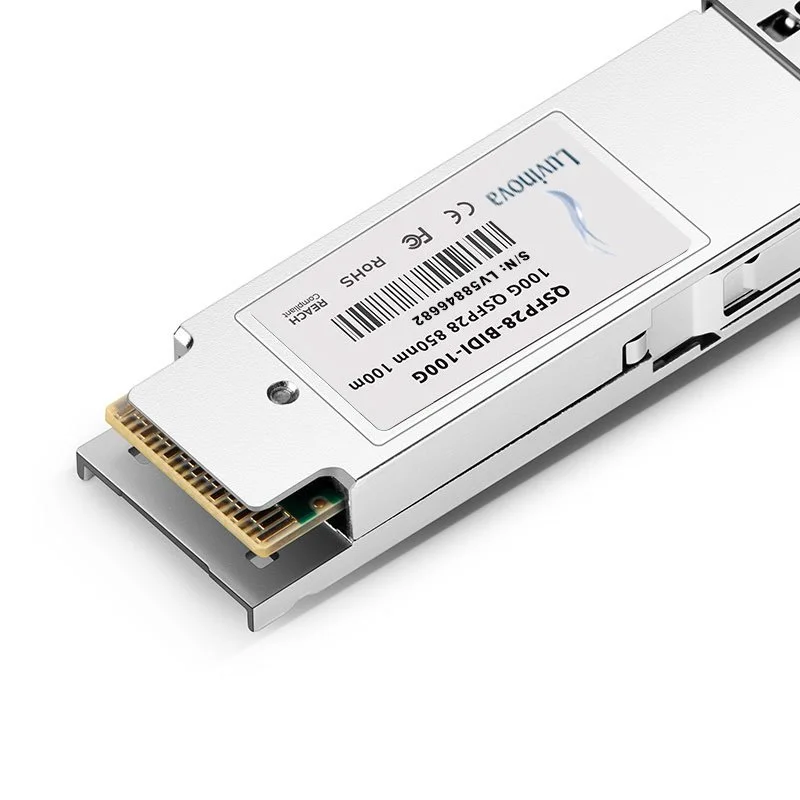

The Cisco Compatible 100GBASE-SR SWDM4 Bi-Directional QSFP28 transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to 100 Gigabit Ethernet connectivity.
Quantity:
Cisco Compatible 100GBASE-SR SWDM4 Bi-Directional QSFP28 Optical Transceiver Module for Ethernet and Data Center (MMF, 850nm, 880nm, 910nm and 940nm, 100m, LC, DOM)
Product Highlights
Built-in II-VI Finisar Chip, Max. Power Consumption 3.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Upgrade 10G Ethernet to 100G without Changing the Existing Fiber Cabling Infrastructure
4x25Gb/s 850nm VCSEL-based Transmitter
Should be Interoperable with FS QSFP28-BIDI-100G Transceiver
FS BOX - Support Real-time Configuration
Compliant to IEEE 802.3bm, and Hot Pluggable QSFP28 MSA
Class 1 Laser Safety
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QSFP28-BIDI-100G | Vendor Name | FS |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelength | 850nm | Max Cable Distance | 75m@OM3/100m@OM4/150m@OM5 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -5.5 - 3dBm | Minimum Receiver Power | -9.5dBm |
| Powerbudget | 4dB | Receiver Overload | 3.4dbm |
| Power Consumption | ≤3.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DDM/DOM | Supported | Bit Error Ratio (BER) | 5E-5 (Pre-FEC) |
| Inbuilt FEC | No | Protocols | QSFP28 MSA and IEEE 802.3bm CAUI-4 |
| Application | Data Center - 100GBASE Ethernet | Warranty | 5 Years |
