QSFP28-FR-100GQSFP28

$462.00

The 100GBASE-FR Single Lambda QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. The transceiver includes a Broadcom chip to convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. This transceiver is compliant with QSFP28 MSA, IEEE 802.3cd and 100G Lambda MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet, 400G to 100G breakout applications.

The 100GBASE-FR Single Lambda QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. The transceiver includes a Broadcom chip to convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. This transceiver is compliant with QSFP28 MSA, IEEE 802.3cd and 100G Lambda MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet, 400G to 100G breakout applications.

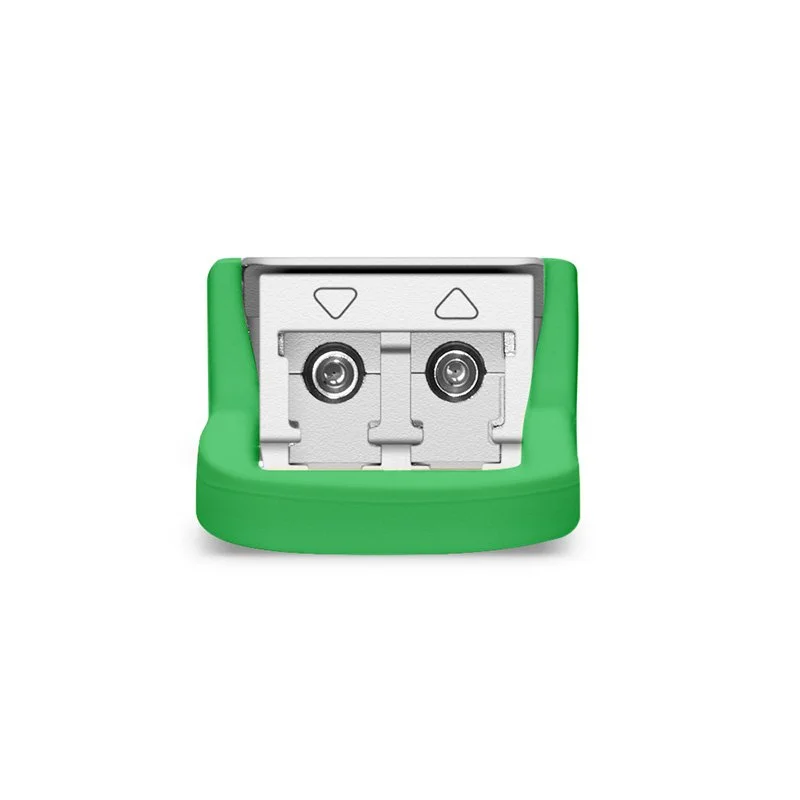

Cisco QSFP-100G-FR-S Compatible 100GBASE-FR Single Lambda QSFP28 PAM4 Optical Transceiver Module (Single Lambda, SMF, 1310nm, 2km, LC, DOM)

Product Highlights

Built-in Broadcom 7nm DSP Chip, and Max. Power Consumption 4W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP28 and 100G Single Lambda MSA Compliant, 1310nm PAM4 modulated
Interoperate with QSFPDD-XDR4-400G in 4x100G Breakout Applications
High-Speed Electrical Interface Compliant to IEEE 802.3cd
FS BOX - Support Real-time Configuration
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Single Lane Data Path Aligned with Future Single-lane 100G Ports (SFP112)

KeyValueKeyValue
Part NumberQSFP28-FR-100GVendor NameFS
Form FactorQSFP28Max Data Rate103.125Gbps (4x 25.78Gbps)
Wavelength1310nmMax Cable Distance2km
ConnectorDuplex LCMediaSMF
Transmitter TypeEMLReceiver TypePIN
TX Power-2.4~4dBmMinimum Receiver Power-6.4dBm
Powerbudget4dBReceiver Overload4.5dBm
Power Consumption≤4WExtinction Ratio>3.5dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
Packaging TechnologyCOB (Chip on Board) PackagingInbuilt FECYes (KP4)
Modulation FormatPAM4Protocols100G Lambda MSA 100G-FR Specification compliant
