QSFP28-LR4-100GQSFP28

$544.00

The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.

The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.

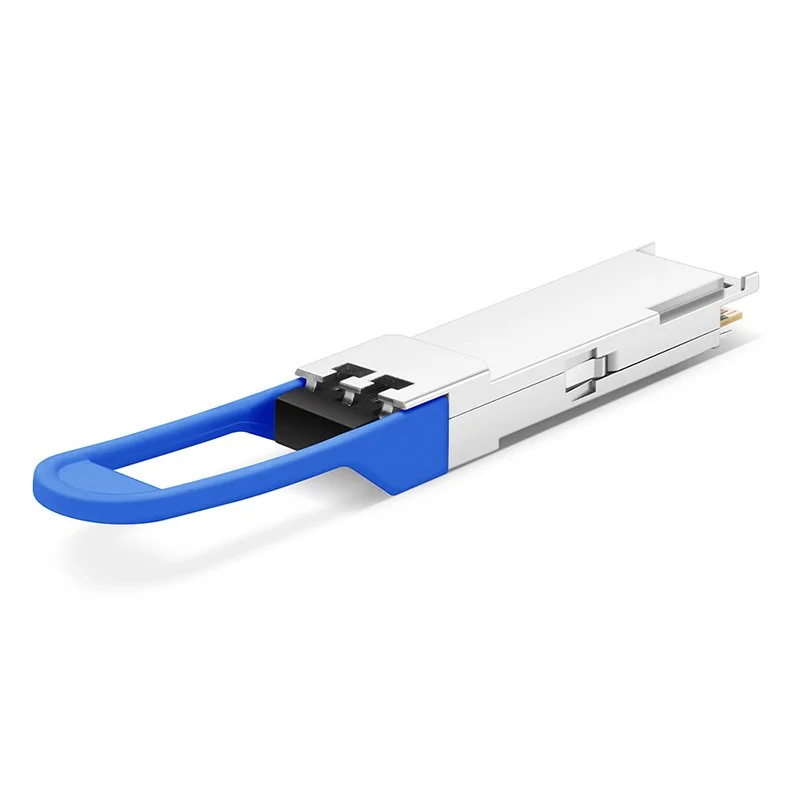

100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

Product Highlights

Built-in Semtech Chip, Max. Power Consumption 3.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP28 MSA Compliant
High-Speed Electrical Interface Compliant to IEEE 802.3bm
FS BOX - Support Real-time Configuration
Adopt BOX Packaging, with Great Reliability, Airtightness, and Heat Dissipation Performance
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

KeyValueKeyValue
Part NumberQSFP28-LR4-100GVendor NameFS
Form FactorQSFP28Max Data Rate103.125Gbps (4x 25.78Gbps)
Wavelength1310nmMax Cable Distance10km

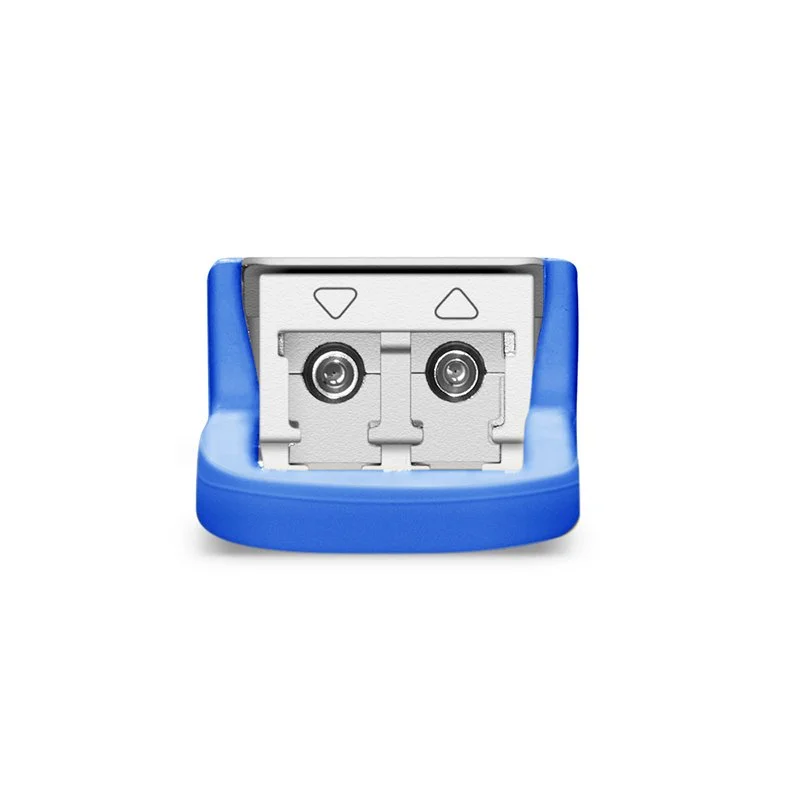

ConnectorDuplex LCMediaSMF
Transmitter Type4 x LAN WDM EMLReceiver TypePIN
TX Power-4.3~4.5dBmReceiver Sensitivity<-10.6dBm
Powerbudget6.3dBReceiver Overload4.5dBm
Power Consumption≤3.5WExtinction Ratio>4dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
Modulation FormatNRZCDR (Clock and Data Recovery)TX & RX Built-in CDR
ProtocolsIEEE 802.3ba 100GBASE-LR4 - IEEE 802.3bm - QSFP28 MSA - SFF-8665 - SFF-8636Warranty5 Years
