QSFP28-PSM4-100GQSFP28

$530.00

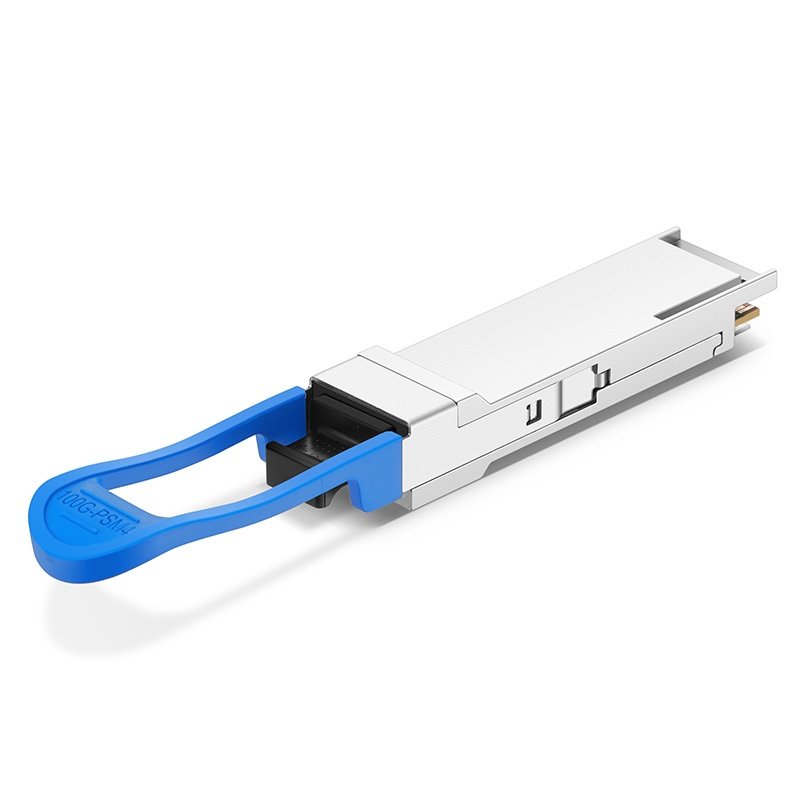

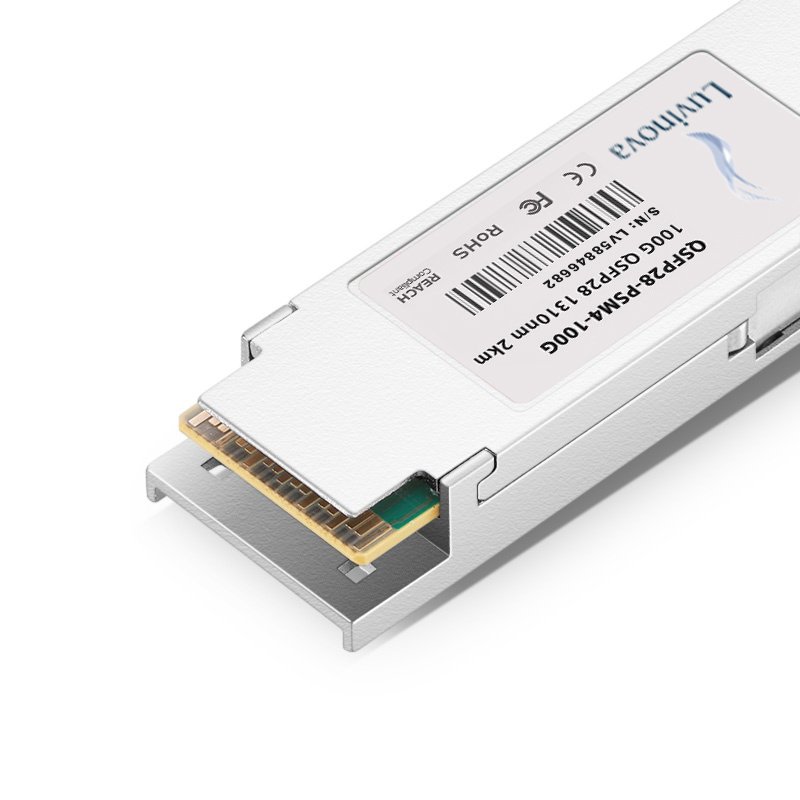

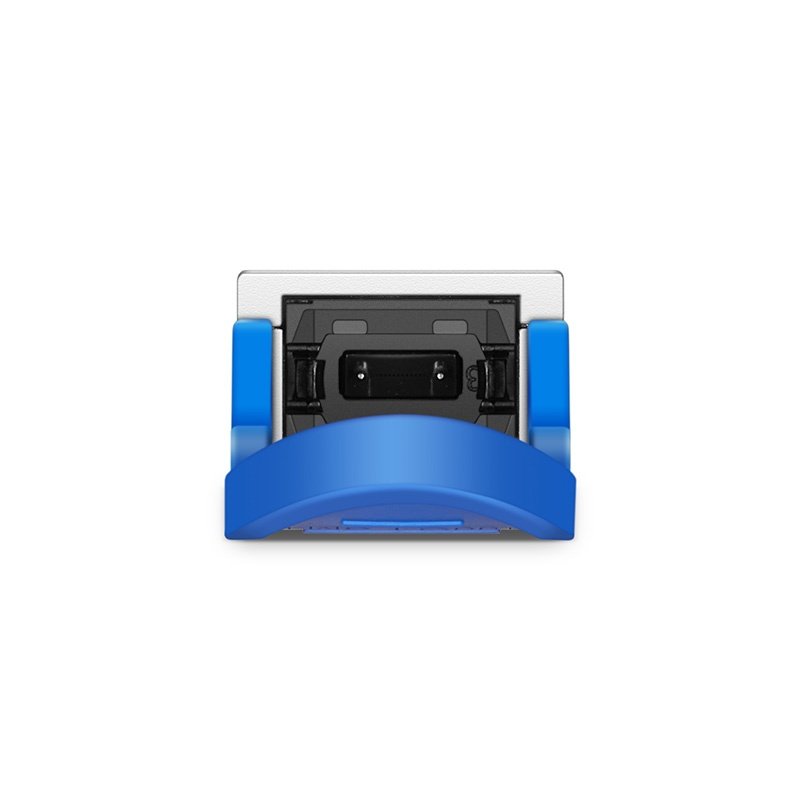

The Cisco Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100G-PSM4 MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

The Cisco Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100G-PSM4 MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Cisco Compatible 100GBASE-PSM4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO, DOM)

Product Highlights

Max. Power Consumption 3.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3bm
Support 100G to 4x25G Breakout Application
FS BOX - Support Real-time Configuration
Hot Pluggable QSFP28 MSA Compliant
Class 1 Laser Safety
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

KeyValueKeyValue
Part NumberQSFP28-PSM4-100GVendor NameFS
Form FactorQSFP28Max Data Rate103.125Gbps (4x 25.78Gbps)
Wavelength1310nmMax Cable Distance2km
ConnectorMTP/MPO-12MediaSMF
Transmitter TypeDFBReceiver TypePIN
TX Power-9.4~2dBmMinimum Receiver Power-12.66dBm
Powerbudget3.2dBReceiver Overload2dBm
Power Consumption≤3.5WExtinction Ratio>3.5dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
CDR (Clock and Data Recovery)TX & RX Built-in CDRInbuilt FECNo
ProtocolsQSFP28 MSA Compliant - SFF-8636Warranty5 Years
