QSFP28-ZR4-100GQSFP28
$6,814.00
The 100GBASE-ZR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It provides 100GBASE Ethernet connectivity option for 100G Ethernet, telecom and data center. It is fully compliant with the QSFP28 MSA and IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard.
Quantity:

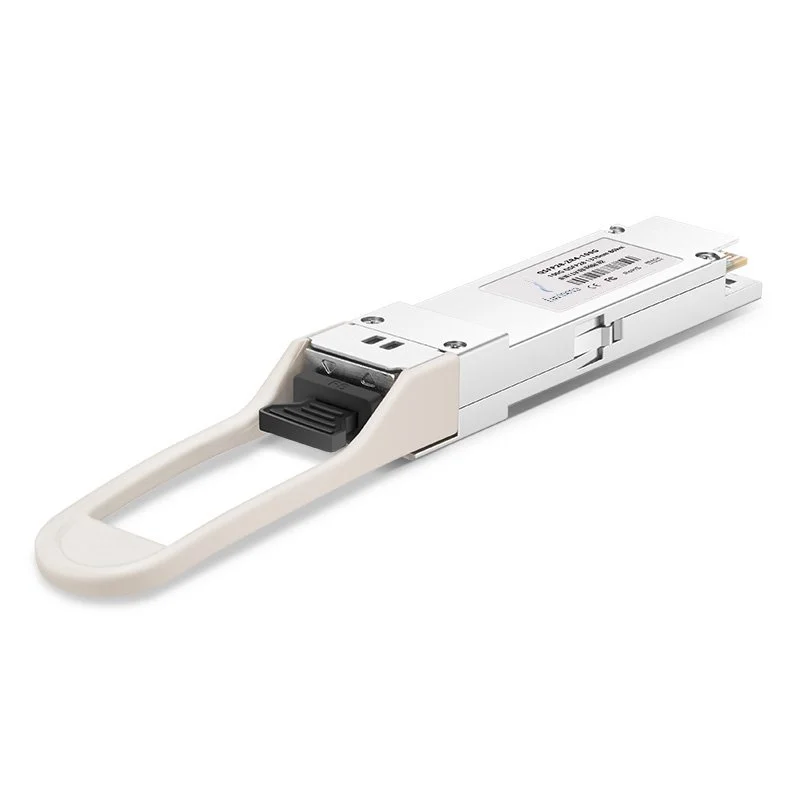

100GBASE-ZR4 QSFP28 Optical Transceiver Module for Data Center, Ethernet and Telecom (SMF, 1310nm, 80km, LC, DOM)
Product Highlights
Max. Power Consumption 6W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP28 MSA Compliant
High-Speed Electrical Interface Compliant to IEEE 802.3bm
FS BOX - Support Real-time Configuration
Reach Long Distance Solutions for Up to 80km
Adopt BOX Packaging, with Great Reliability, Airtightness, and Heat Dissipation Performance
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QSFP28-ZR4-100G | Vendor Name | FS |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 80km |

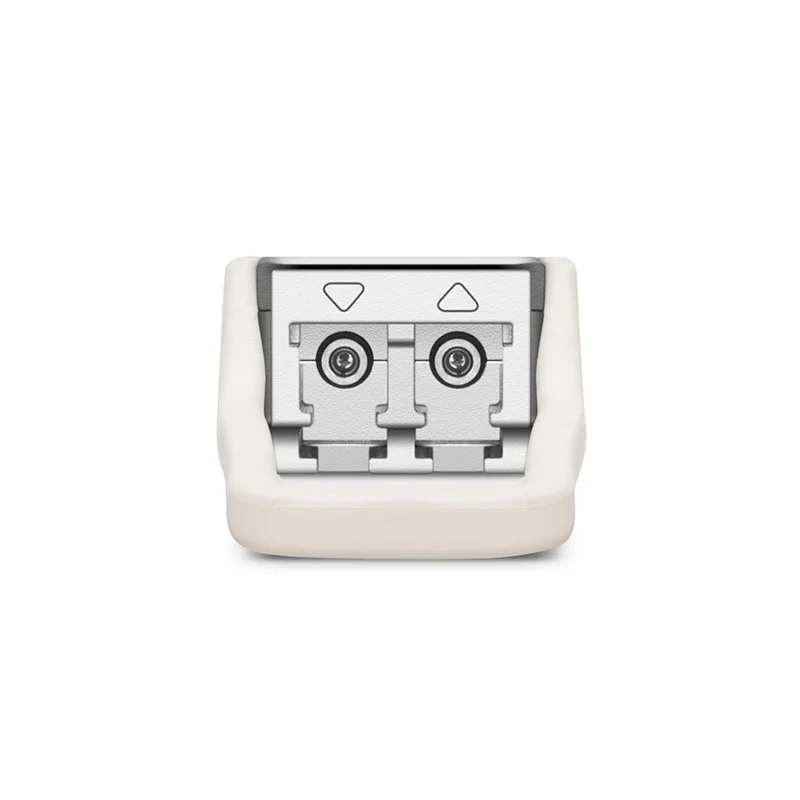

| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML | Receiver Type | APD |
| TX Power | 2~6.5dBm | Receiver Sensitivity | <-28dBm |
| Powerbudget | 31dB | Receiver Overload | 2dBm |
| Power Consumption | ≤6W | Extinction Ratio | >6dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Modulation Format | NRZ |
| Protocols | QSFP28 MSA Compliant | Warranty | 5 Years |
