QSFP-40GE-LR4QSFP+
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

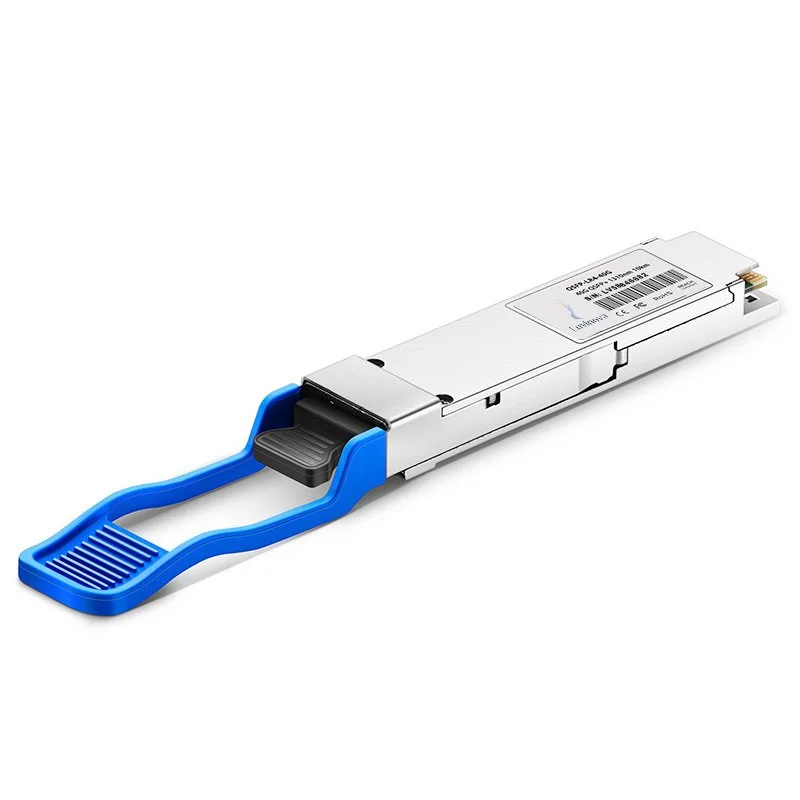

Cisco QSFP-40GE-LR4 Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Product Highlights
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QSFP-40GE-LR4 | Vendor Name | FS |
| Form Factor | QSFP+ | Max Data Rate | 44.6Gbps (4x 11.2Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transimitter Type | DFB CWDM | Receiver Type | PIN |
| TX Power | -7~2.3dBm | Receiver Sensitivity | <-11dBm |
| Powerbudget | 4dB | Receiver Overload | 2.3dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | >3.5dB |
| Host FEC | Supported | Bit Error Ratio (BER) | 1.00E-12 |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | OTN OTU3 - 40G Ethernet - Fiber Channel - SATA/SAS3 - MSA Compliant |
