QSFP-40G-PLRL4QSFP+
$339.00
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with 100G PSM4 MSA. Digital diagnostics functions are also available via the I2C interface, as specified by the 100G PSM4 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Quantity:

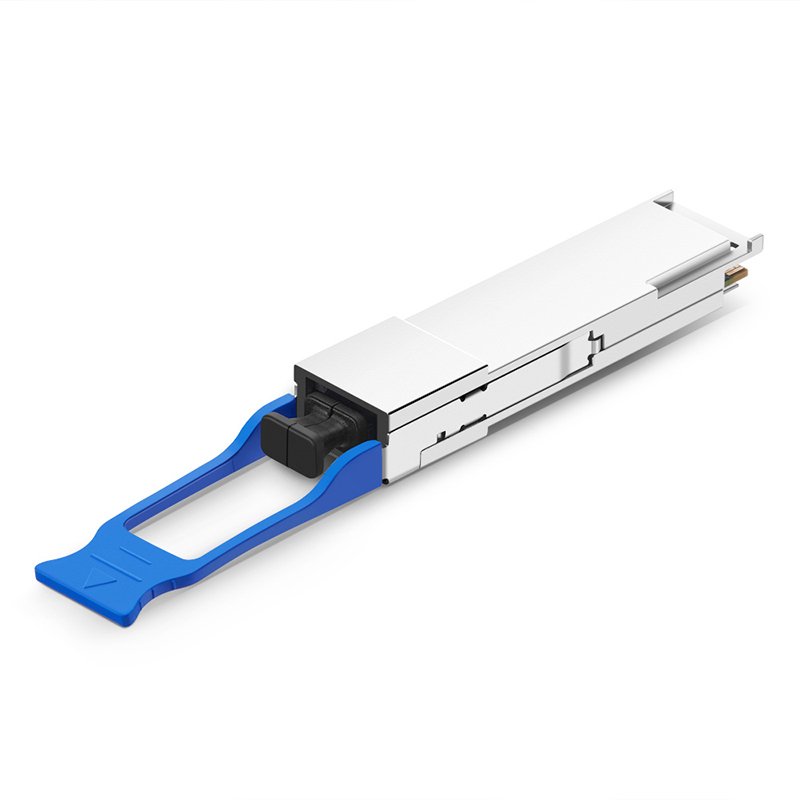

Cisco QSFP-40G-PLRL4 Compatible 40GBASE-PLRL4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO, DOM)
Product Highlights
Upgrade 10G Ethernet to 40G without changing the existing Multimode fiber cabling infrastructure
Max. Power Consumption 3.5W
Up to 150m via Multimode OM3 and 2km via Singlemode OS2
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3ba
FS BOX - Support Real-time Configuration
Compliant to SFF-8436 and QSFP MSA
Hot Pluggable QSFP+ Form Factor
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | QSFP-40G-PLRL4 | Vendor Name | FS |
| Form Factor | QSFP+ | Max Data Rate | 41.2Gbps (4x 10.3Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 2km |
| Connector | MTP/MPO-12 Male | Media | SMF |
| Transimitter Type | DFB CWDM | Receiver Type | PIN |
| TX Power | -9.4~0.5dBm | Receiver Sensitivity | <-14.4dBm |
| Powerbudget | 5dB | Receiver Overload | 0.5dBm |
| Power Consumption | ≤2.5W | Extinction Ratio | >3.5dB |
| Host FEC | Supported | Bit Error Ratio (BER) | 1.00E-12 |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | 100G PSM4 MSA |
