QSFP56-LR4-200GQSFP56

$2,861.00

Generic Compatible QSFP56 transceiver supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8661, SFF-8636 and IEEE 802.3bs standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.

Generic Compatible QSFP56 transceiver supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8661, SFF-8636 and IEEE 802.3bs standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.

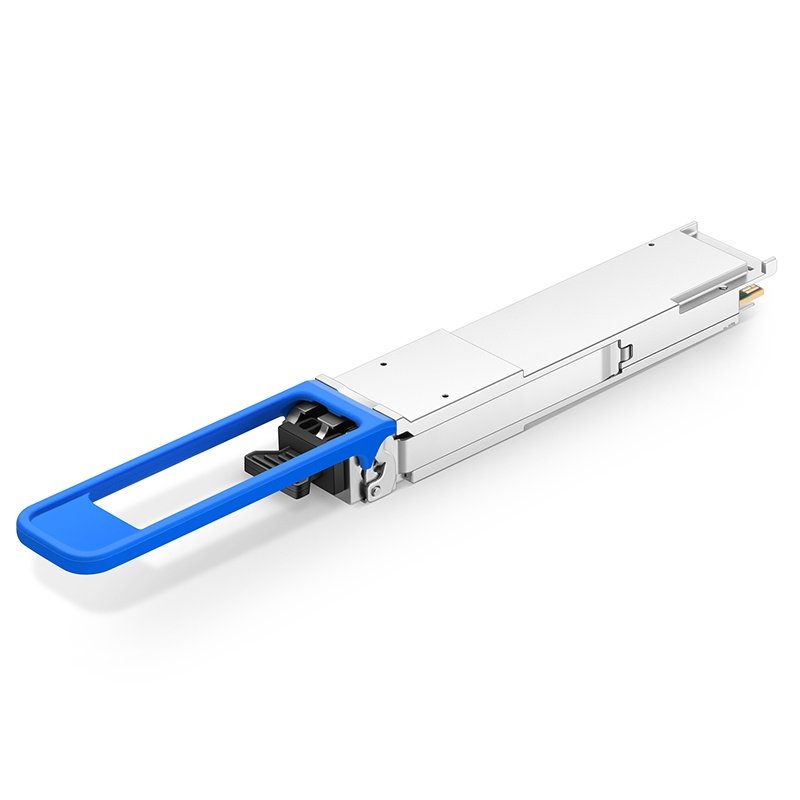

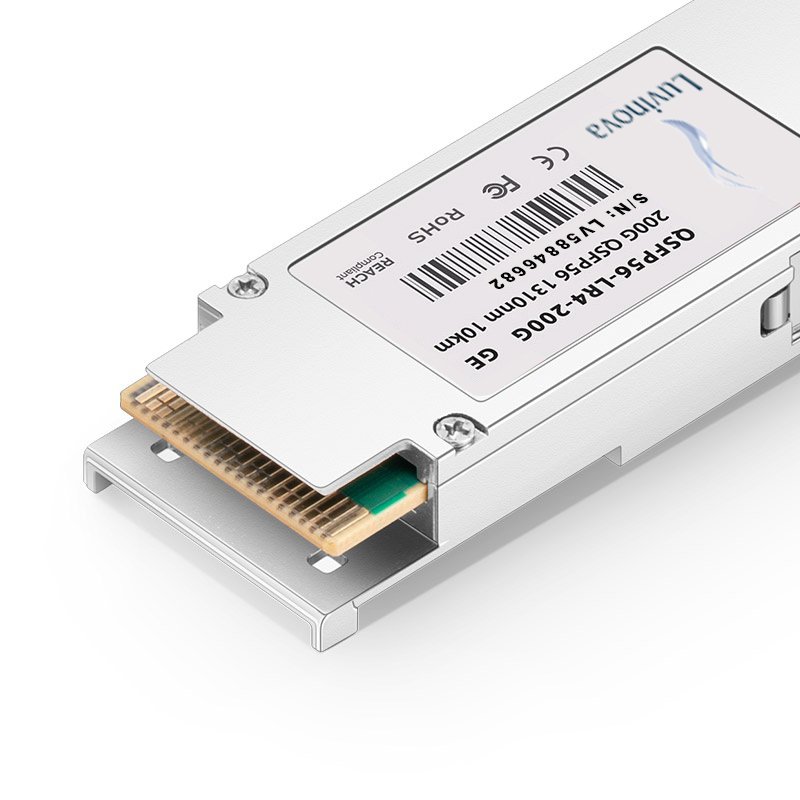

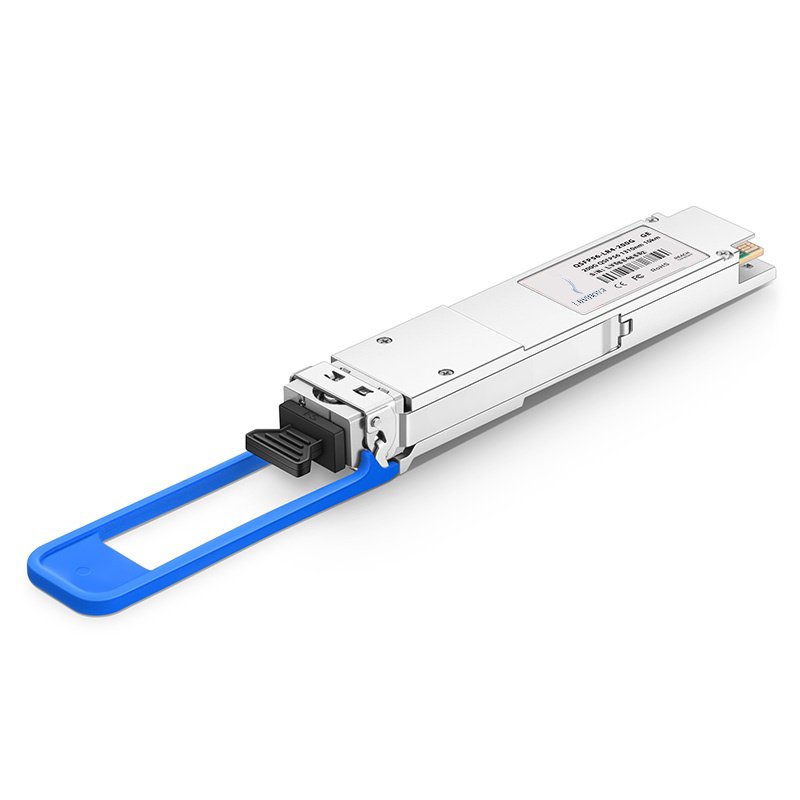

Generic Compatible 200GBASE-LR4 QSFP56 Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 10km, LC, DOM)

Product Highlights

Built-in Inphi Chip, Max. Power Consumption 8W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP56 Form Factor
High-speed Electrical Compliant to IEEE 802.3bs
Compliant with QSFP56 MSA CMIS V4.0
4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety

KeyValueKeyValue
Part NumberQSFP56-LR4-200GVendor NameFS
Form FactorQSFP56Max Data Rate200Gbps
Wavelength1310nmMax Cable Distance10km

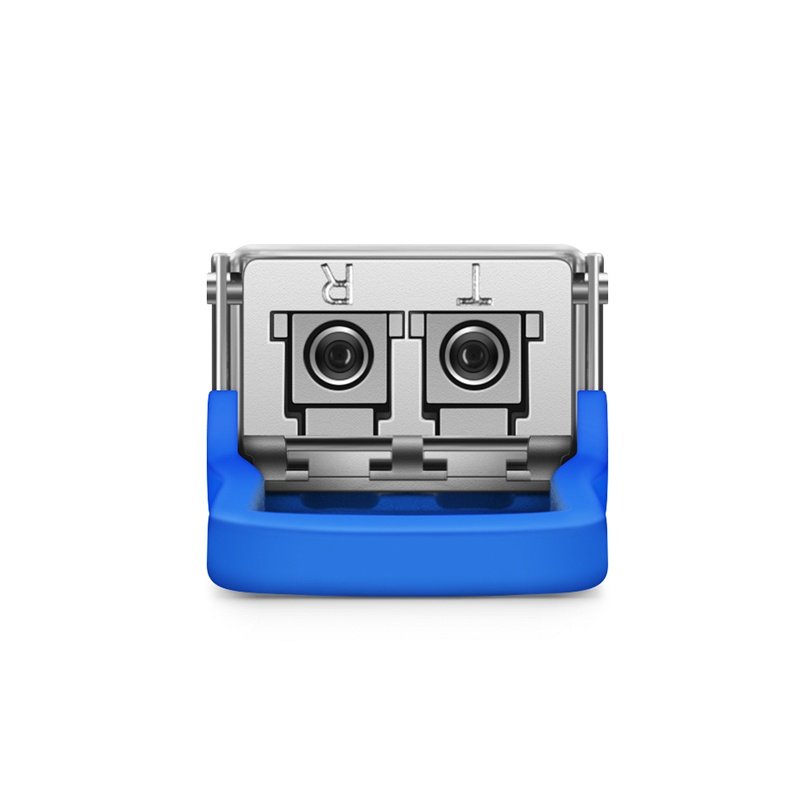

ConnectorDuplex LCMediaSMF
Transmitter TypeDFBReceiver TypePIN
TX Power-3.4~5.3dBmReceiver Sensitivity＜-9.7dBm
Powerbudget6.3dBmReceiver Overload5.1dBm
Power Consumption≤8WExtinction Ratio＞3.5dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
Modulation FormatPAM4Inbuilt FECNo
ProtocolsIEEE 802.3bs - QSFP56 MSA - SFF-8661 - SFF-8636Warranty5 Years
