QSFPDD-SR8-400GQSFP-DD

$680.00

The 400GBASE-SR8 module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and Demultiplexing of the eight wavelengths are managed within the device.

The 400GBASE-SR8 module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and Demultiplexing of the eight wavelengths are managed within the device.

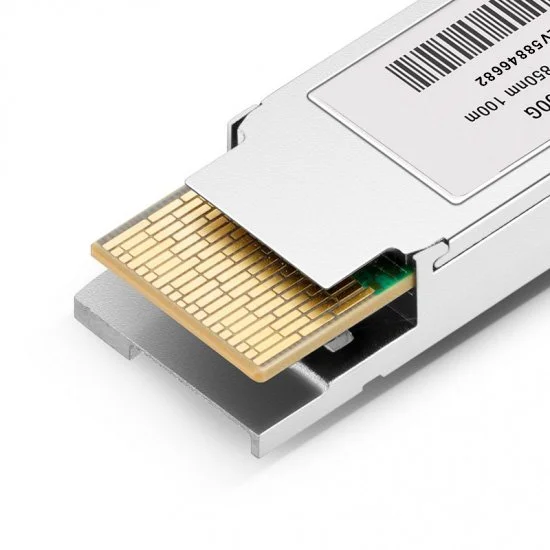

400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)

Product Highlights

Built-in Inphi DSP Chip, Max. Power Consumption 10W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Compliant with QSFP-DD MSA CMIS Rev5.0, OIF 56G PAM4
FS BOX V4.0 - Support Real-time Configuration
Hot Pluggable QSFP-DD Form Factor
High-speed Electrical Compliant to IEEE 802.3cd
8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

KeyValueKeyValue
Part NumberQSFPDD-SR8-400GVendor NameFS
Form FactorQSFP-DDMax Data Rate400Gbps
Wavelength850nmMax Cable Distance70m@OM3/100m@OM4
ConnectorMTP/MPO-16 (APC)MediaMMF
Transmitter TypeVCSEL 850nmReceiver TypePIN
TX Power-6~4dBmReceiver Sensitivity<-7.9dBm
Powerbudget1.9dBReceiver Overload4dBm
Power Consumption≤10WExtinction Ratio3dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
DSPTX and RXHost FECSupported
ProtocolsIEEE 802.3cd - QSFP-DD MSA - CMIS 5.0Warranty5 Years
