SFP+
$162.00
10GBASE-T SFP+ compatible SFP+ transceiver provides 10GBase throughput up to 80m over cat6a/cat7 copper cable via RJ-45 connector. This transceiver is compliant with IEEE 802.3an, IEEE 802.3az and SFP+ MSA. Each SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
Quantity:

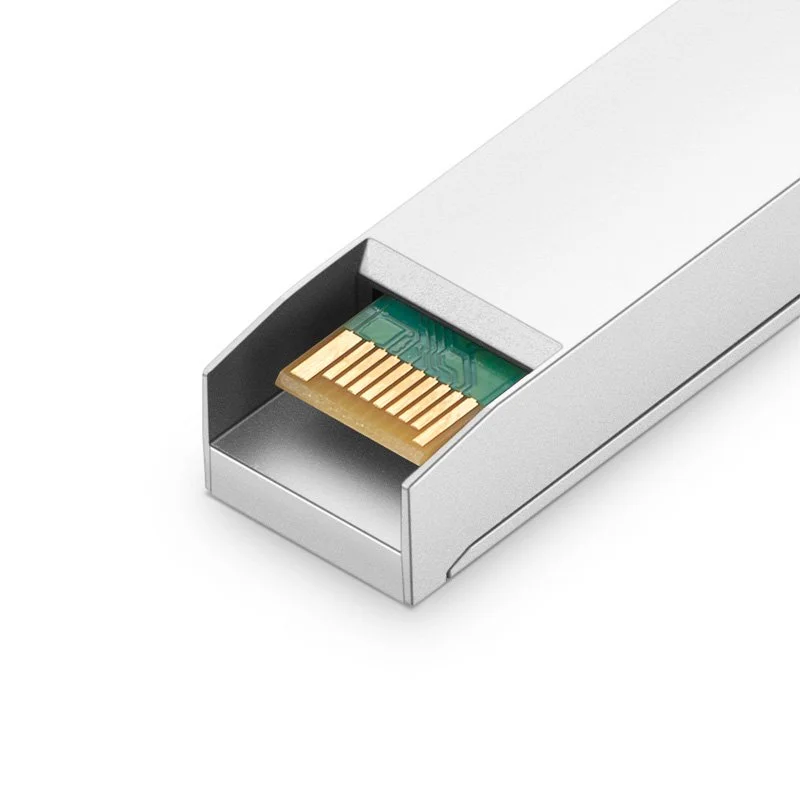

10GBASE-T SFP+ Transceiver Module (Copper, 80m, RJ-45)
Product Highlights
Built-in Broadcom chip, Max. Power Consumption 2.5W(Com.) and 2.7W(Ind.)
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Terminated RJ45 Connectors, Allowing 10G Bandwidth over Existing Infrastructure
Hot Pluggable SFP+ MSA Compliant
FS BOX - Support Real-time Configuration
Optical Interoperability with 10GBASE X2 Interfaces On the Same Link
RoHS Compliant
IEEE 802.3an and IEEE 802.3az Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part number | SFP-10G-T | Vendor Name | FS |
| Form Factor | SFP+ | Data Rate | 10Gbps |
| Cable Distance | Up to 80m | Power Consumption | ≤2.5W (Com.) ≤2.7W (Ind.) |
| Connector | RJ-45 | DOM Support | No |
| Temperature Range | COM 0 to 70°C (32 to 158°F) IND -40 to 85°C (-40 to 185°F) | Protocols | SFP+ MSA Compliant - CPRI - eCPRI |
