SFP-10/25G-BXU-ISFP28

$135.00

The 10/25GBASE SFP28 transceiver supports up to 10km link lengths over OS2 SMF via an LC simplex connector. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It is compliant with IEEE 802.3cc, SFP MSA, SFP28 MSA, SFF-8402, SFF-8472, SFF-8432, SFF-8431 and CEI-28G-VSR standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. The SFP-10/25G-BX-I provides 10/25GBASE Ethernet connectivity option for 10/25G Ethernet, telecom, data center and 5G Network Fronthaul, suitable for both outdoor and indoor deployments.

The 10/25GBASE SFP28 transceiver supports up to 10km link lengths over OS2 SMF via an LC simplex connector. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It is compliant with IEEE 802.3cc, SFP MSA, SFP28 MSA, SFF-8402, SFF-8472, SFF-8432, SFF-8431 and CEI-28G-VSR standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. The SFP-10/25G-BX-I provides 10/25GBASE Ethernet connectivity option for 10/25G Ethernet, telecom, data center and 5G Network Fronthaul, suitable for both outdoor and indoor deployments.

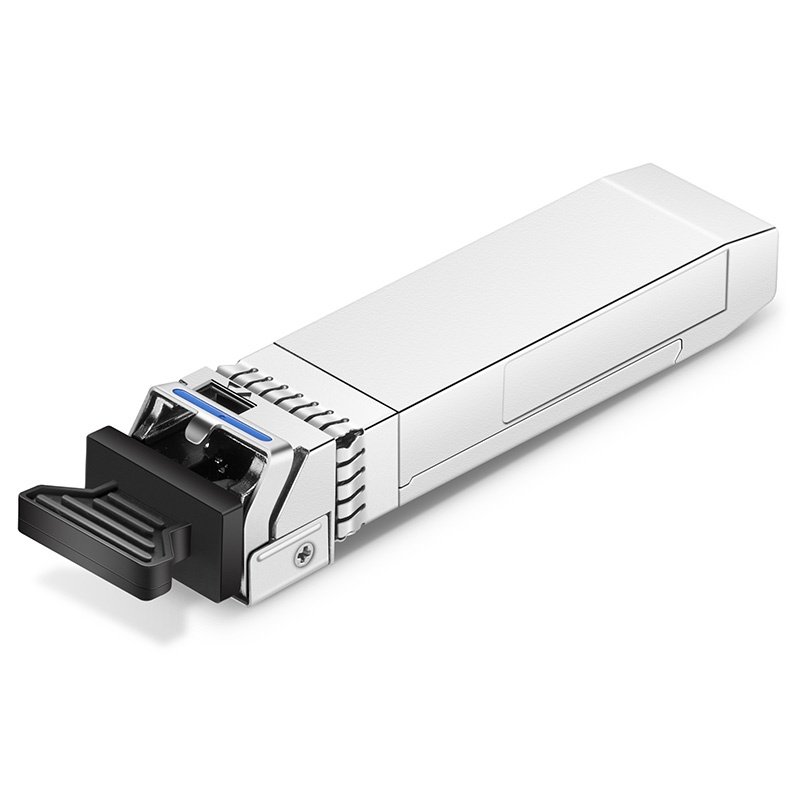

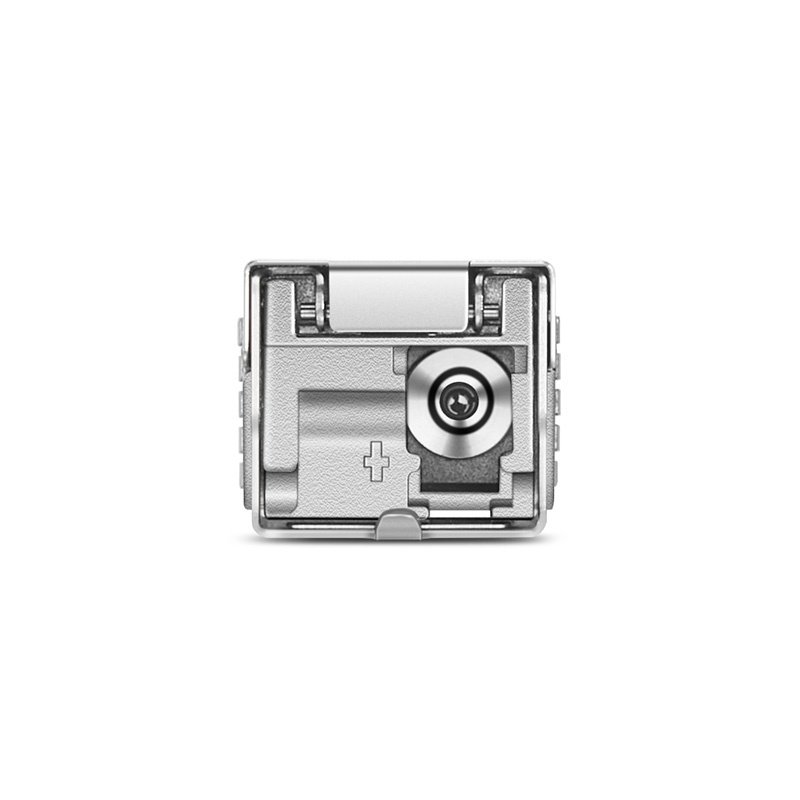

Cisco SFP-10/25G-BXU-I Compatible 10/25GBASE-BX SFP28 Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DOM)

Product Highlights

Max. Power Consumption 1.5W
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
Double Your Bandwith by Using Only One Fiber for Transmit and Receive
Industrial Temperature Range -40°C to 85°C
High-speed Connectivity Compliant to IEEE 802.3cc
FS BOX - Support Real-time Configuration
Support 10G/25G Dual-rate
Hot Pluggable SFP MSA and SFP28 MSA Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 Laser Safety

KeyValueKeyValue
Part NumberSFP-10/25G-BXU-IVendor NameFS
Form FactorSFP28Max Data Rate25.78Gbps
Wavelength1270nm-TX/1330nm-RXMax Cable Distance10km
ConnectorSimplex LCMediaSMF
Transmitter TypeDFBReceiver TypePIN
TX Power-7~2.5dBmReceiver Sensitivity<-12dBm
Powerbudget5dBReceiver Overload2.5dBm
Power Consumption≤1.5 WExtinction Ratio＞3dB
DDM/DOMSupportedIndustrial Temperature Range-40 to 85°C (-40 to 185°F)
CDR (Clock and Data Recovery)TX & RX Built-in CDRProtocolsIEEE802.3cc - SFF-8402 - SFF-8472 - SFF-8432 - SFF-8431 - CEI-28G-VSR
