SFP-10/25GCSR-85SFP28

$80.00

The 10/25GBASE-CSR SFP28 optionstransceiver provides 10/25GBase-CSR throughput up to 400m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. It provides connectivity option for 25G Ethernet, 10G Ethernet and data center. It is fully compliant with the SFF-8472, SFF-8024, SFF-8431 and IEEE802.3by standard. Featuring low power consumption and high speed, this 25G transceiver is ideal for 25G Ethernet, Telecom, and Data Center.

The 10/25GBASE-CSR SFP28 optionstransceiver provides 10/25GBase-CSR throughput up to 400m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. It provides connectivity option for 25G Ethernet, 10G Ethernet and data center. It is fully compliant with the SFF-8472, SFF-8024, SFF-8431 and IEEE802.3by standard. Featuring low power consumption and high speed, this 25G transceiver is ideal for 25G Ethernet, Telecom, and Data Center.

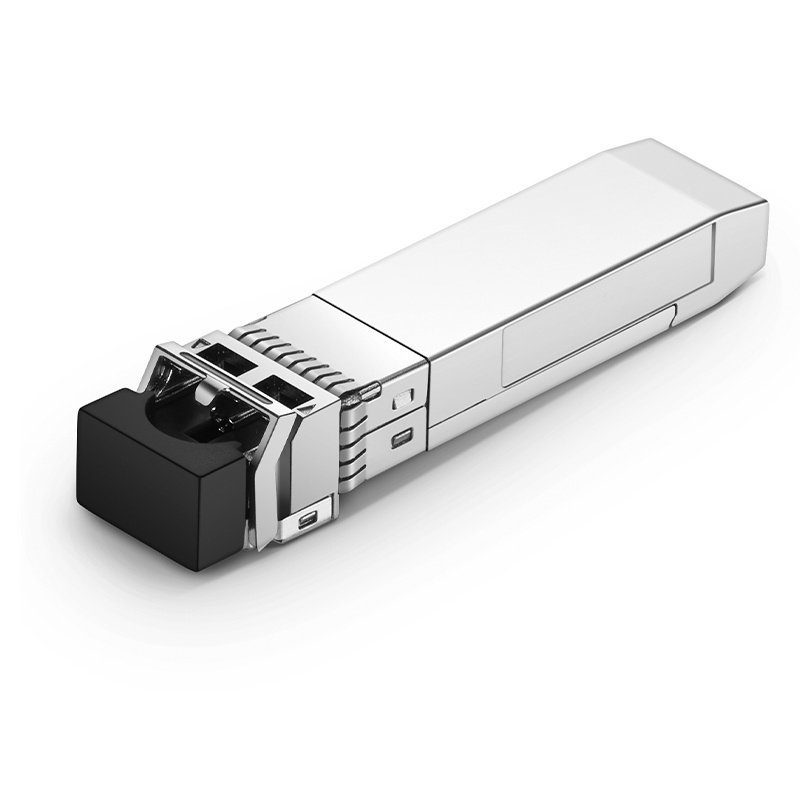

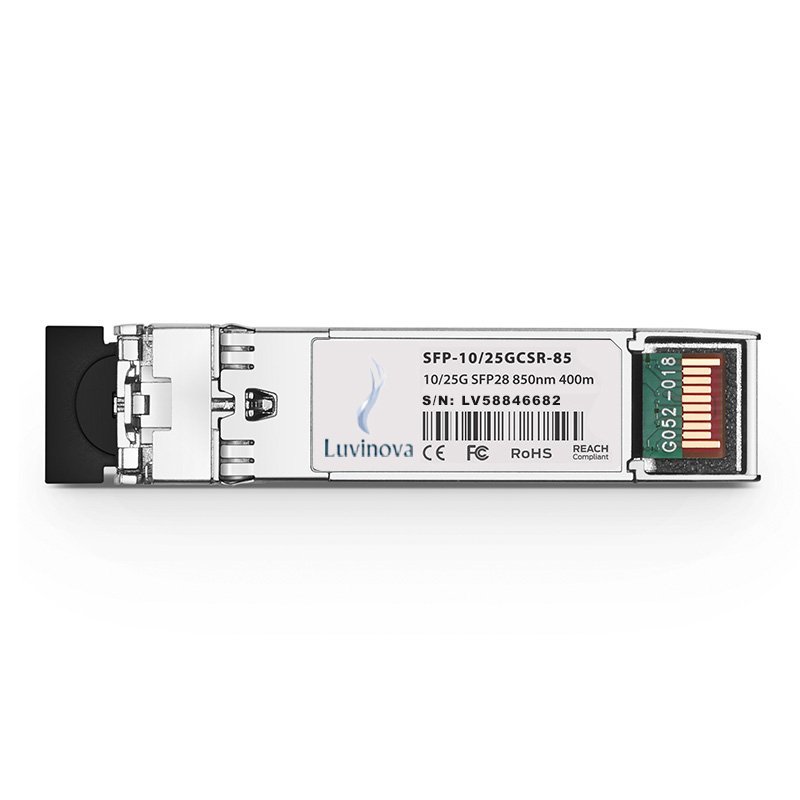

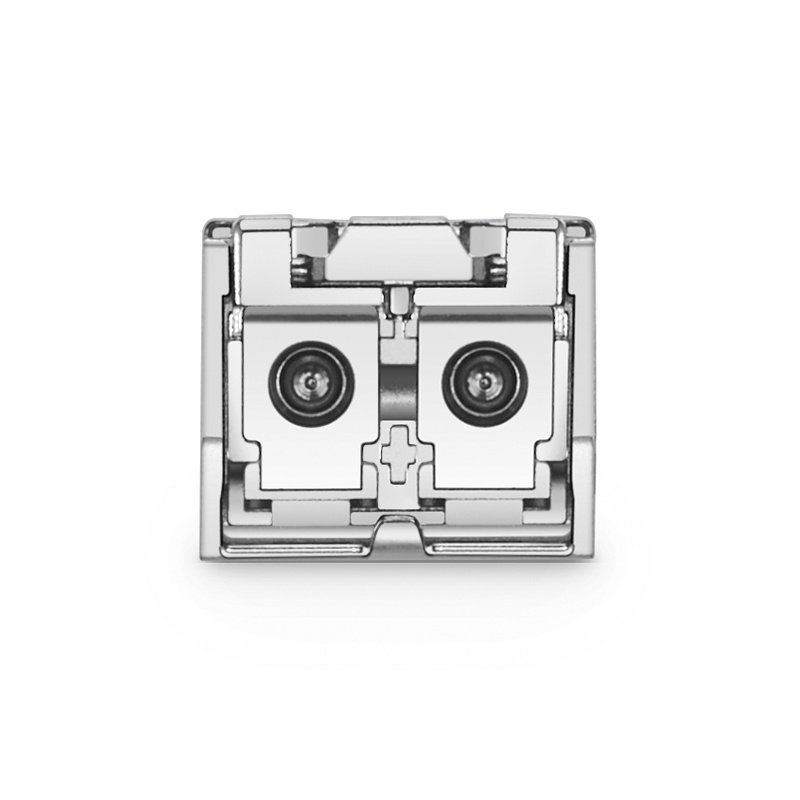

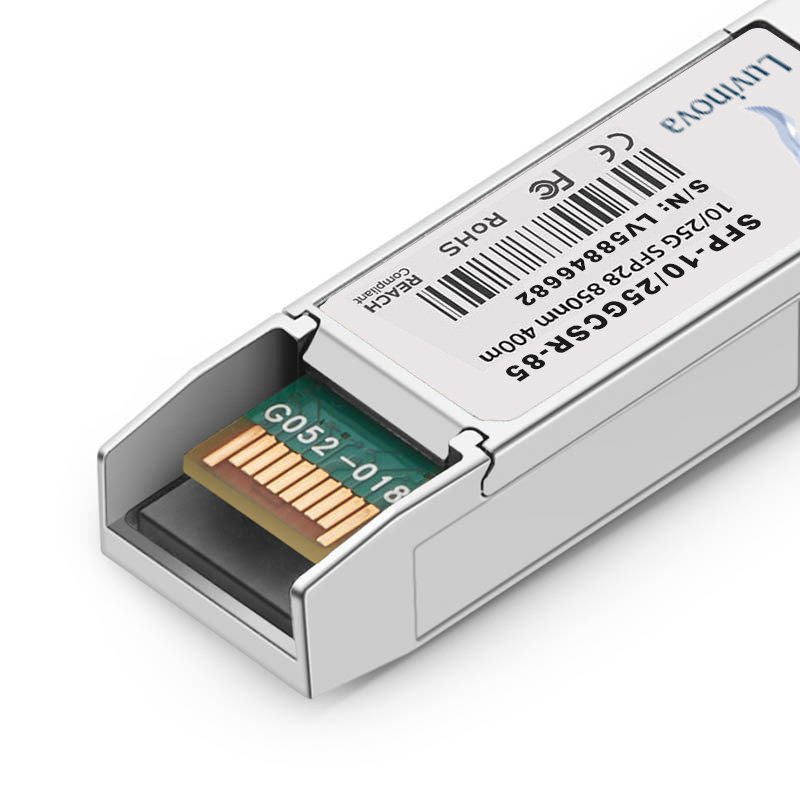

10/25GBASE-CSR SFP28 Optical Transceiver Module for Data Center ( MMF, 850nm, 400m, LC, DOM)

Product Highlights

Built-in Macom Chip, Max. Power Consumption 1W
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3by
FS BOX - Support Real-time Configuration
Support 10G/25G Dual-rate
Hot Pluggable SFP28 MSA Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 Laser Safety

KeyValueKeyValue
Part NumberSFP-10/25GCSR-85Vendor NameFS
Form FactorSFP28Max Data Rate25Gbps
Wavelength850nmMax Cable Distance400m@OM4/300m@OM3
ConnectorDuplex LCMediaMMF
Transmitter TypeVCSELReceiver TypePin
TX Power-6.4 ~2.4dBmReceiver Sensitivity＜-10.3dBm
Powerbudget3.9dBReceiver Overload2.4dBm
Power Consumption≤1WExtinction Ratio>2dB
CDR (Clock and Data Recovery)TX and RX Built-in CDRFEC FunctionSupport RS-FEC
Commercial Temperature Range0 to 70°C (32 to 158°F)ProtocolsSFF-8472 - SFF-8024 - SFF-8431 - SFF-8432 - IEEE802.3by
