SFP-10G-BX20DSFP+
$55.00
Cisco SFP-10G-BX20D Compatible SFP+ transceiver supports up to 20km over OS2 SMF via an LC simplex connector. This transceiver is compliant with SFF-8431 and IEEE 802.3ae standard. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet etc.
Quantity:

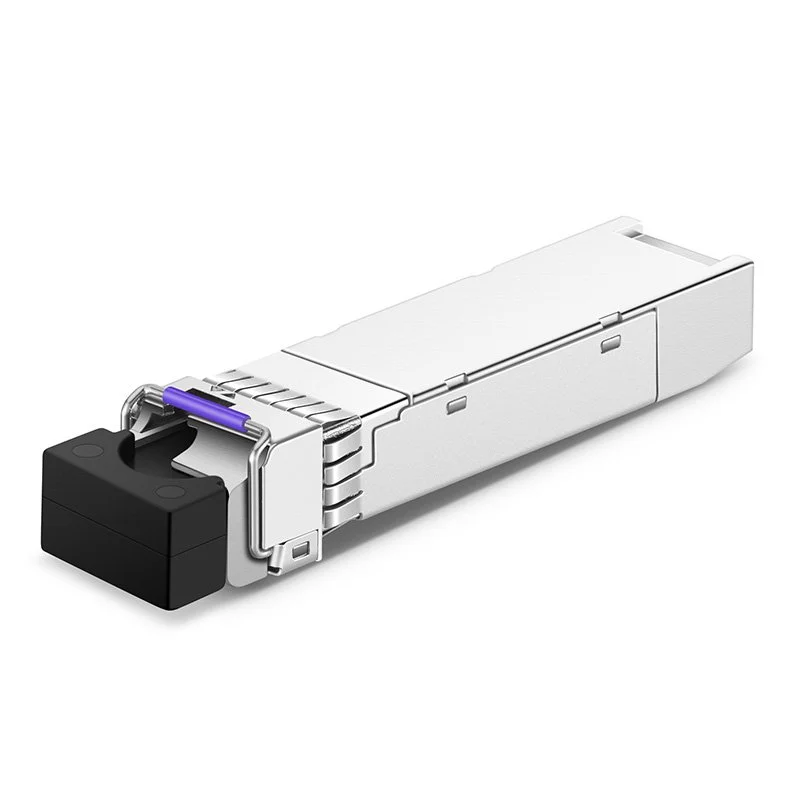

Cisco SFP-10G-BX20D Compatible 10GBASE-BX20-D SFP+ Transceiver Module (SMF, 1330nm-TX/1270nm-RX, 20km, LC, DOM)
Product Highlights
Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Save half fiber by Using Only One Fiber for Transmit and Receive
Hot Pluggable SFP+ MSA Compliant
FS BOX - Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Optical Interoperability with 10GBASE XFP Interfaces On the Same Link
Class 1 FDA Laser Safety and RoHS Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | SFP-10G-BX20D | Vendor Name | FS |
| Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 1330nm-TX/1270nm-RX | Max Cable Distance | 20km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -6~3dBm | Receiver Sensitivity | < -14.4dBm |
| Powerbudget | 8.4dB | Receiver Overload | 0.5dBm |
| Typical Power Consumption | ≤1W | Extinction Ratio | >3.5dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant - CPRI - eCPRI |
