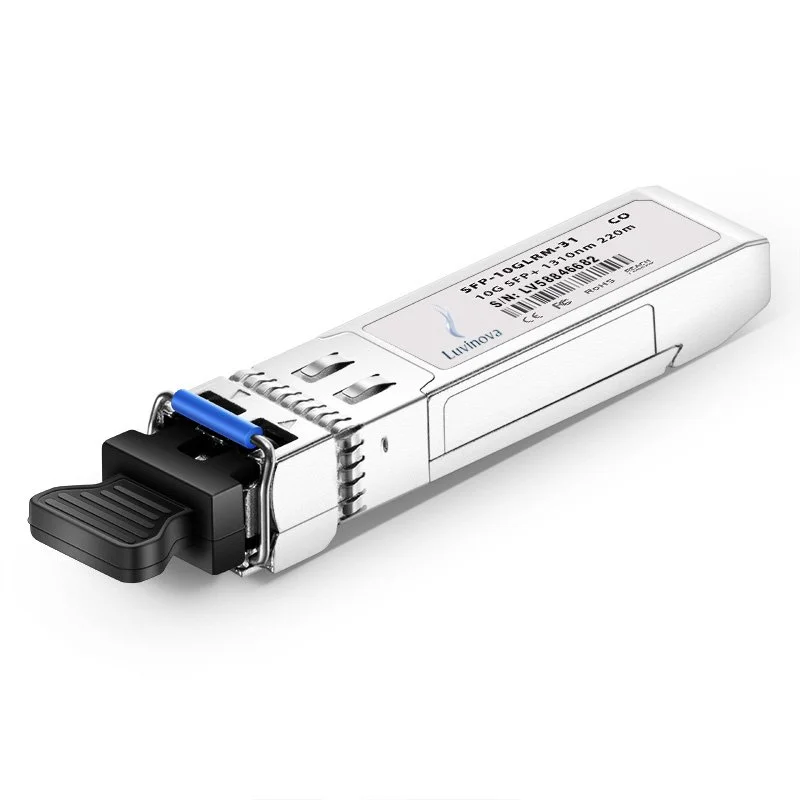

SFP-10G-LRMSFP+
$33.00
Cisco SFP-10G-LRM compatible SFP+ transceiver supports up to 220m over OM3 multimode fiber (MMF). This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3aq 10GBASE-LRM. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Legacy FDDI multimode links etc.
Quantity:
Cisco SFP-10G-LRM Compatible 10GBASE-LRM SFP+ Transceiver Module (MMF/SMF, 1310nm, 220m/300m, LC, DOM)
Product Highlights
Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable SFP+ MSA Compliant
FS BOX - Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
Class 1 FDA Laser Safety and RoHS Compliant
IEEE 802.3ae Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | SFP-10G-LRM | Vendor Name | FS |
| Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm | Max Cable Distance | 220m @ OM3 MMF - 300m over SMF |
| Connector | Duplex LC | Optical Components | FP 1310nm |
| Media | MMF/SMF | DOM Support | Yes |
| TX Power | -6.5~-0.5dBm | Receiver Sensitivity | < -8.4dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant - CPRI - eCPRI |
