SFP-10GSR-85SFP+
$27.00
10GBASE-SR compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit , etc.
Quantity:

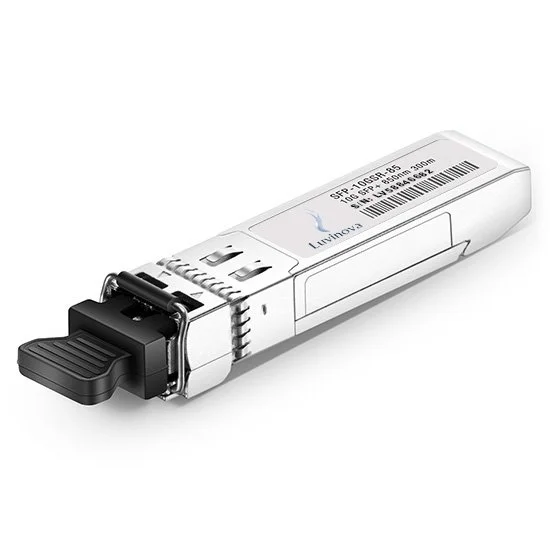

10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Product Highlights
Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable SFP+ MSA Compliant
FS BOX - Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
Class 1 FDA Laser Safety and RoHS Compliant
IEEE 802.3ae Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | SFP-10GSR-85 | Vendor Name | FS |
| Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm | Max Cable Distance | 300m@OM3/400m@OM4 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -7.3~-1dBm | Receiver Sensitivity | < -11.1dBm |
| Powerbudget | 3.8dB | Receiver Overload | -1dBm |
| Typical Power Consumption | <1W | Extinction Ratio | >3dB |
| Temperature Range | COM 0 to 70°C (32 to 158°F) IND -40 to 85°C (-40 to 185°F) | Protocols | IEEE 802.3ae - SFF-8472 - SFF-8431 - SFF-8432 - SFP+ MSA Compliant - CPRI - eCPRI |
