SFP-10G-SRSFP+
$27.00
Cisco SFP-10G-SR compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Quantity:

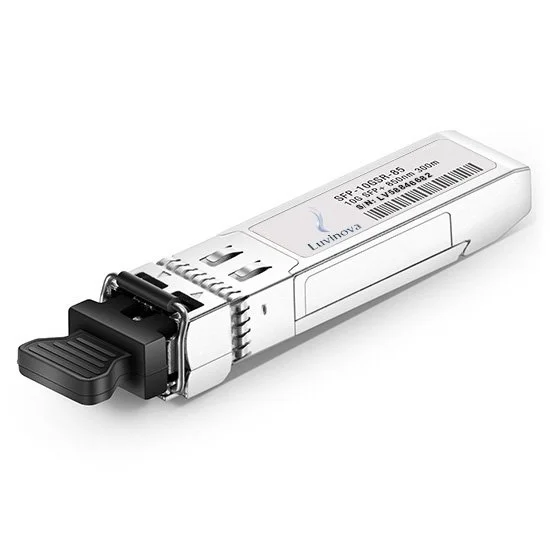

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Product Highlights
Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable SFP+ MSA Compliant
FS BOX - Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
Class 1 FDA Laser Safety and RoHS Compliant
IEEE 802.3ae Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | SFP-10G-SR | Vendor Name | FS |
| Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm | Max Cable Distance | 300m@OM3/400m@OM4 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -7.3~-1dBm | Receiver Sensitivity | < -11.1dBm |
| Powerbudget | 3.8dB | Receiver Overload | -1dBm |
| Typical Power Consumption | <1W | Extinction Ratio | >3dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE 802.3ae - SFF-8472 - SFF-8431 - SFF-8432 - SFP+ MSA Compliant - CPRI - eCPRI |
