SFP-10G-ZR-ISFP+

$367.00

Cisco SFP-10G-ZR-I compatible SFP+ transceiver supports up to 80km link lengths over SMF via an LC duplex connector. This transceiver is compliant with IEEE Std 802.3by, SFF-8431, SFF-8432, SFF-8402, SFF-8472, SFF-8024. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. The SFP-10GZR-55-I is for industrial operating temperature range and can work in harsh industrial environments, such as telecommunication, data processing and management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.

Cisco SFP-10G-ZR-I compatible SFP+ transceiver supports up to 80km link lengths over SMF via an LC duplex connector. This transceiver is compliant with IEEE Std 802.3by, SFF-8431, SFF-8432, SFF-8402, SFF-8472, SFF-8024. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. The SFP-10GZR-55-I is for industrial operating temperature range and can work in harsh industrial environments, such as telecommunication, data processing and management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.

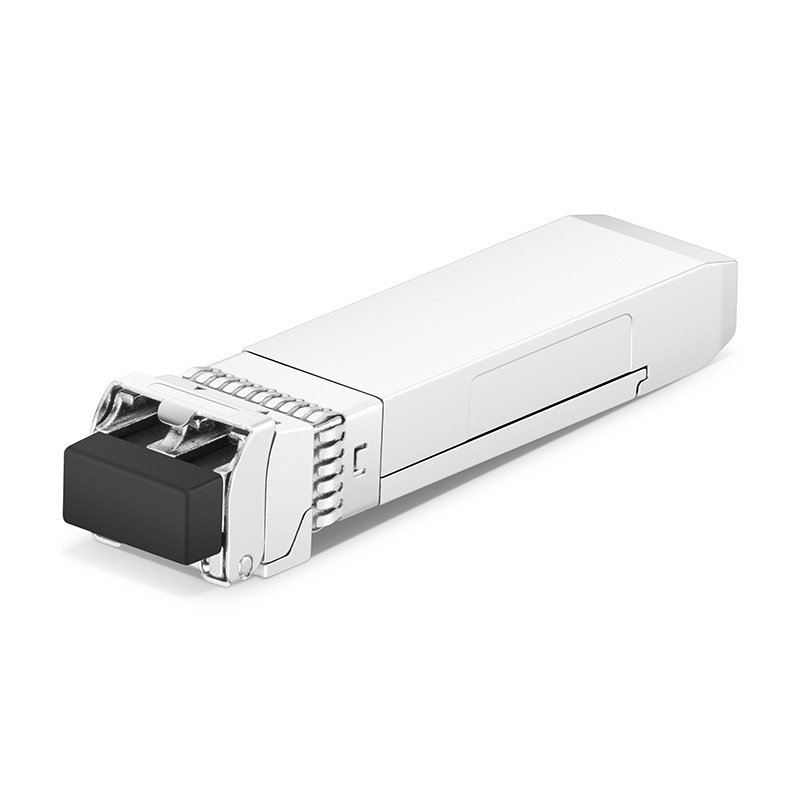

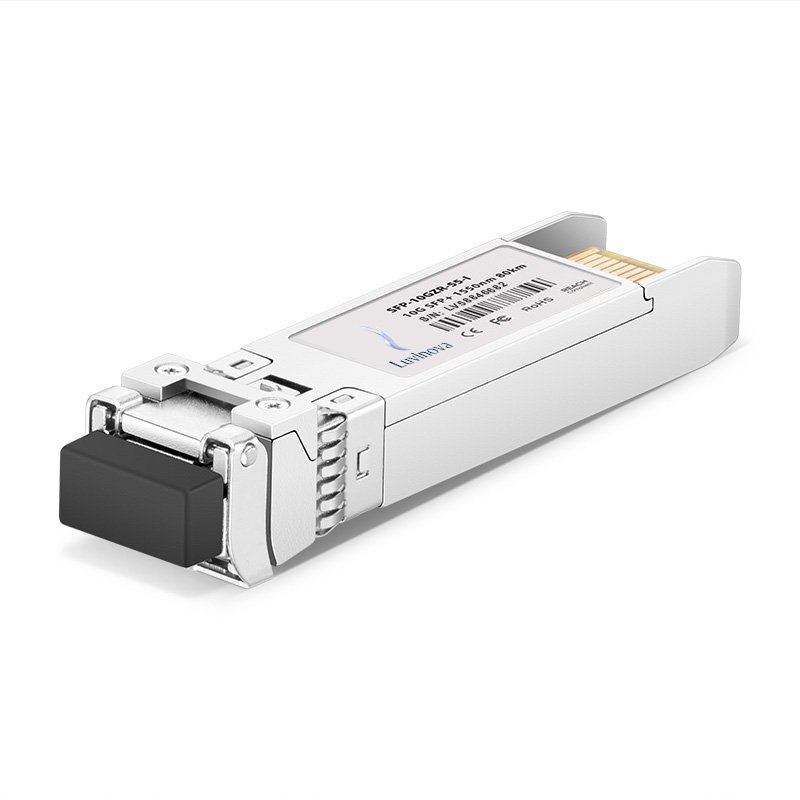

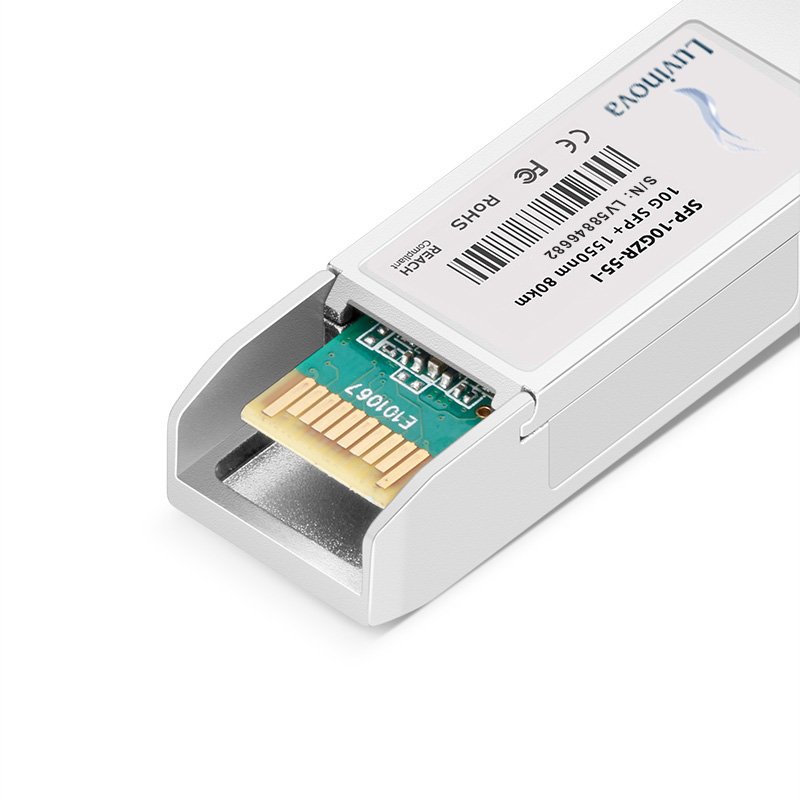

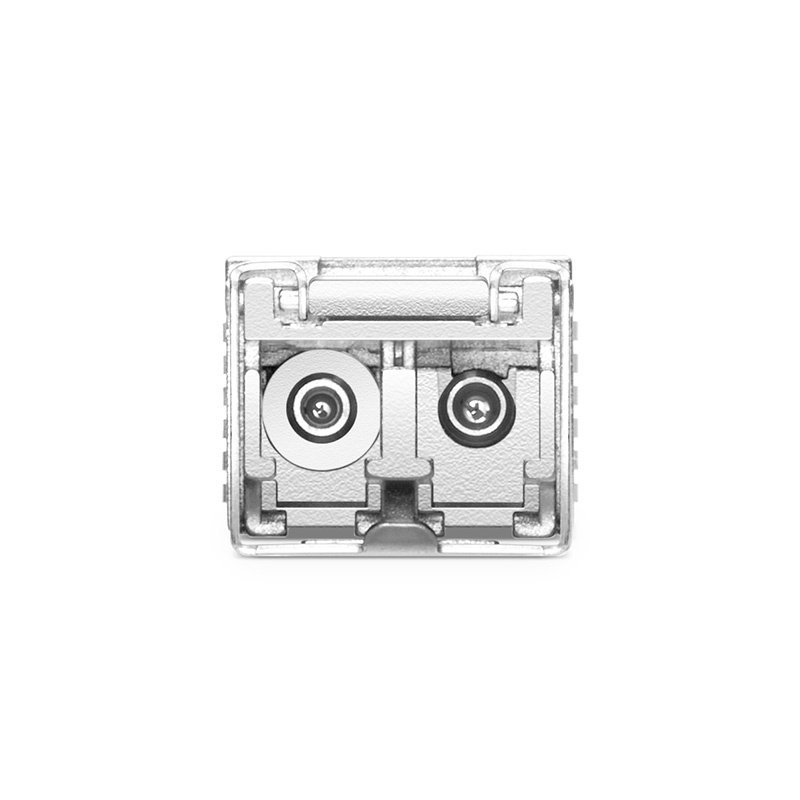

Cisco SFP-10G-ZR-I Compatible 10GBASE-ZR SFP+ Transceiver Module (SMF, 1550nm, 80km, LC, Industrial, DOM)

Product Highlights

Max. Power Consumption 2W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Industrial Temperature Range -40°C to 85°C
Hot Pluggable SFP+ MSA Compliant
FS BOX - Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces on the Same Link
Class 1 Laser Safety
IEEE Std 802.3by Compliant

KeyValueKeyValue
Part NumberSFP-10G-ZR-IVendor NameFS
Form FactorSFP+Max Data Rate10.3125Gbps
Wavelength1550nmMax Cable Distance80km
ConnectorDuplex LCMediaSMF
Transmitter TypeEMLReceiver TypePIN
TX Power0~5dBmReceiver Sensitivity<-23dBm
Powerbudget23dBReceiver Overload-8dBm
Power Consumption≤2WExtinction Ratio>7.5dB
Industrial Temperature Range-40 to 85°C (-40 to 185°F)ProtocolsIEEE Std 802.3by - SFF-8402 - SFF-8432 - SFF-8472 - SFF-8431 - SFF-8024
