SFP-25GBX-U-20SFP28

$162.00

The Cisco-compatible SFP28 transceiver provides up to 20 km of 25GBase-BX throughput over single-mode fiber (SMF) using 1270nm-TX/1330nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 25GBASE Ethernet connectivity options for 25G Ethernet, telecom and data centers. It is fully compliant with SFF-8472, SFF-8402, SFF-8432, SFF-8431, MSA and eCPRI standards.

The Cisco-compatible SFP28 transceiver provides up to 20 km of 25GBase-BX throughput over single-mode fiber (SMF) using 1270nm-TX/1330nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 25GBASE Ethernet connectivity options for 25G Ethernet, telecom and data centers. It is fully compliant with SFF-8472, SFF-8402, SFF-8432, SFF-8431, MSA and eCPRI standards.

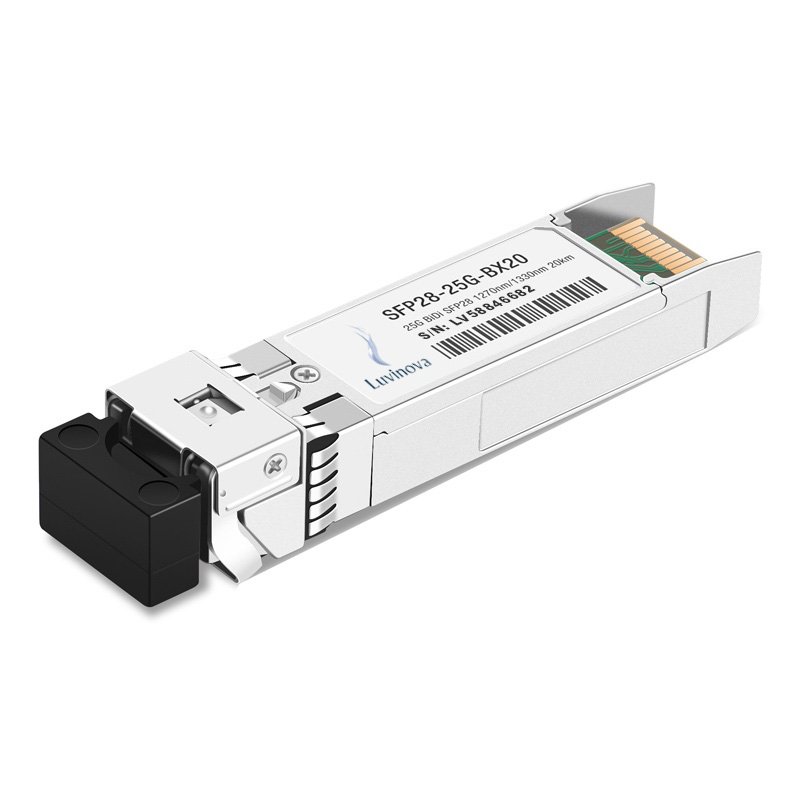

Cisco SFP-25GBX-U-20 Compatible 25GBASE SFP28 Optical Transceiver Module for Data Center and Telecom (SMF, 1270nm-TX/1330nm-RX, 20km, LC, DOM)

Product Highlights

Max. Power Consumption 1.2W
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
Double Your Bandwith by Using Only One Fiber for Transmit and Receive
High-speed Connectivity Compliant to IEEE 802.3cc
FS BOX - Support Real-time Configuration
Hot Pluggable SFP28 MSA Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety and RoHS Compliant

KeyValueKeyValue
Part NumberSFP-25GBX-U-20Vendor NameFS
Form FactorSFP28Max Data Rate25.78Gbps
Wavelength1270nm-TX/1330nm-RXMax Cable Distance20km
ConnectorSimplex LCMediaSMF
Transmitter TypeDFB BiDiReceiver TypePIN
TX Power0~6dBmReceiver Sensitivity<-14dBm
Powerbudget14dBReceiver Overload2.5dB
Power Consumption≤1.2WExtinction Ratio3.5dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
CDRTX and RXProtocolseCPRI - SFF-8472 - SFF-8432 - SFF-8431
