SFP-25G-SR-S-ISFP28

$76.00

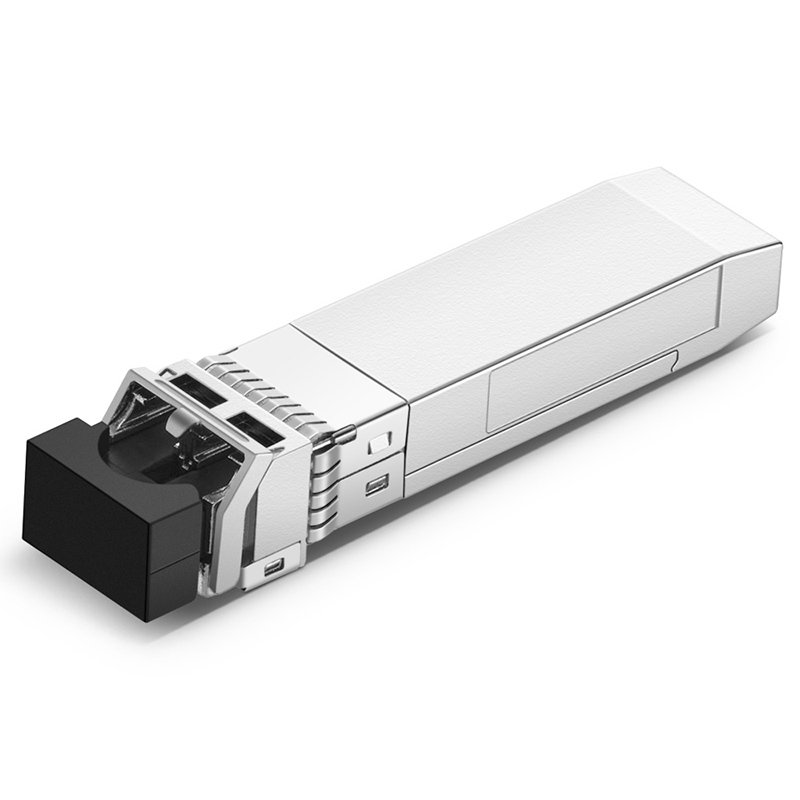

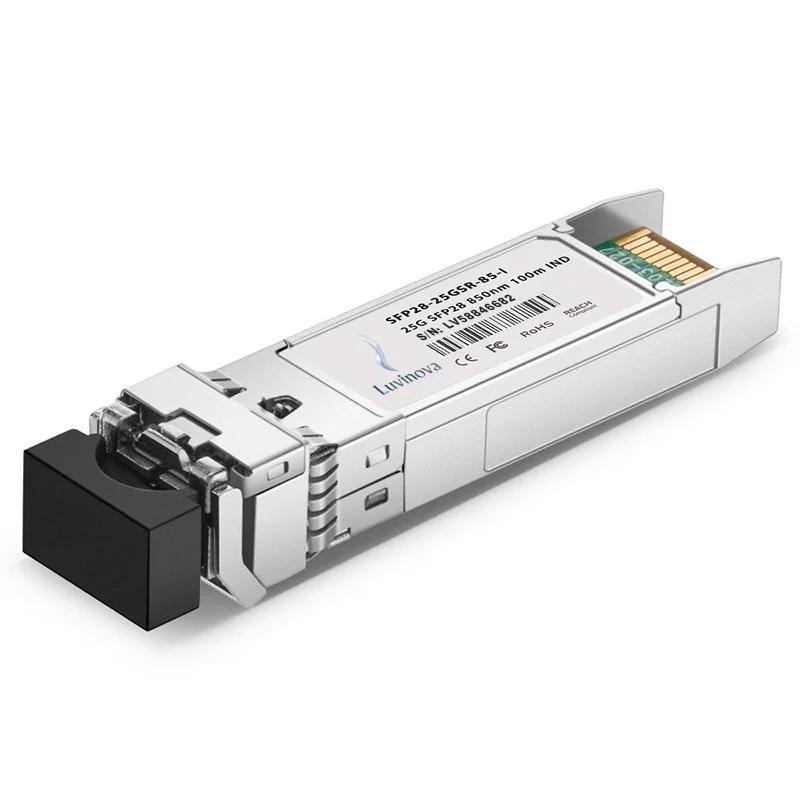

The Cisco SFP-25G-SR-S-I compatible SFP28 transceiver provides 25GBase-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center, suitable for both outdoor and indoor deployments. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

The Cisco SFP-25G-SR-S-I compatible SFP28 transceiver provides 25GBase-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center, suitable for both outdoor and indoor deployments. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

Cisco SFP-25G-SR-S-I Compatible 25GBASE-SR SFP28 Optical Transceiver Module for Data Center and Telecom (MMF, 850nm, 100m, LC, Industrial, DOM)

Product Highlights

Built-in Macom Chip, Max. Power Consumption 1W
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3by and IEEE 802.3cc
FS BOX - Support Real-time Configuration
Support 4x25G Fan out and Easy Migration to 100G Platforms
Industrial Temp -40°C to +85 °C
Hot Pluggable SFP28 MSA Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety and RoHS Compliant

KeyValueKeyValue
Part NumberSFP-25G-SR-S-IVendor NameFS
Form FactorSFP28Max Data Rate25.78Gbps
Wavelength850nmMax Cable Distance100m@OM4/70m@OM3
ConnectorDuplex LCMediaMMF
Transmitter TypeVCSEL 850nmReceiver TypePIN
TX Power-8.4~2.4dBmReceiver Sensitivity<-10.3dBm
Powerbudget1.9dBReceiver Overload2.4dBm
Power Consumption≤1WExtinction Ratio＞2dB
DDM/DOMSupportedIndustrial Temperature Range-40 to 85°C (-40 to 185°F)
CDRTX & RX Built-in CDRFEC FunctionNot Support
ProtocolsSFF-8472 - SFF-8024 - SFF-8431 - SFF-8432Warranty5 Years
